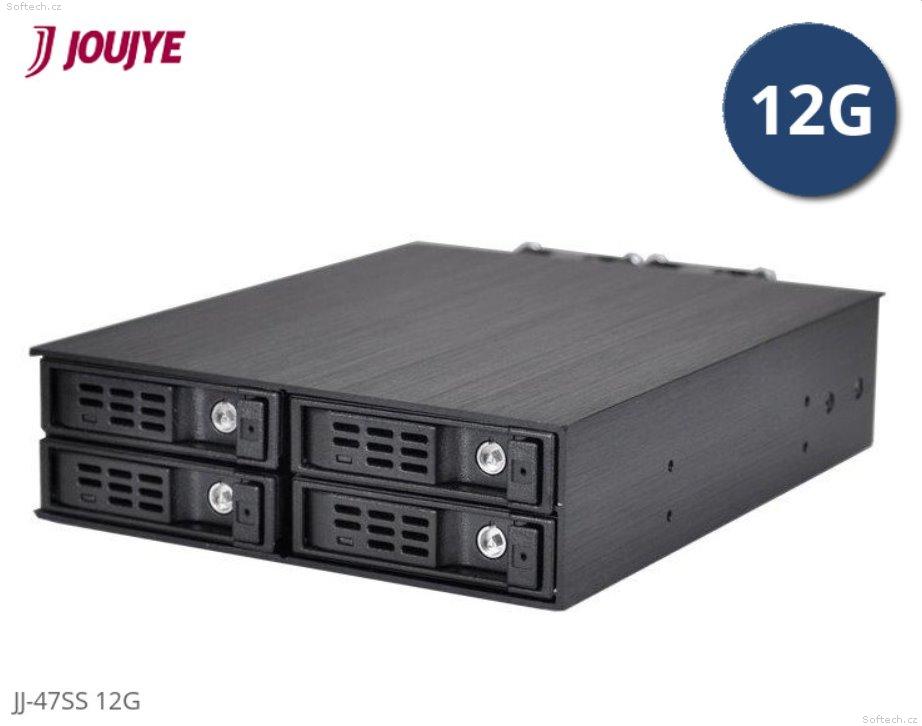

Jou Jye Backplane SATA3, SAS3 4x 2,5"HDD do 5,25" RoHS, 2x fan, 1x minisasHD (SFF-8643), SATA power

SPECIFICATIONS:
Model Name JJ-47SS
Form Factors 1 x 5.25" Bay for 4 x 2.5" HDD/SSD
1 x MiniSAS HD [SFF-8643]
Support HDD types
For 2.5" HDD or SSD
For SAS III HDD/SSD
For SAS 12G or SAS 6G HDD
Supported HDD height upto 14.5mm
Interface 1 x MiniSAS HD [SFF-8643]
Hot swap YES
Power Connector 15pin power connector x 1
Keylock/anti shock
With metal keylock
With guiding rail for anti-vibration design
Anti-vibration With anti-vibration springs on the HDD tray
Transfer rate Support Upto SAS 12Gbps (SAS-III)
HDD Connection Cableless HDD connection
Material Aluminum body & carrier & aluminum front bezel
Air Ventilation
Front ventilating holes,
Horizontal PCB design for easy air flowing, ,
Rear cooling fan: 40 x 40 x 20mm fan x 2
Power LED Power ON : Blue
Fan Failure LED Red blinking(slow) LED indication
Overheating LED Red blinking(fast) LED indication
Data cable w/o cables [*Optional MiniSAS HD to MiniSAS HD cable (70cm)]
Product Colors Black
Dimensions [mm] 202(L) x 146(W) x 42(H)
Weight 0.95 KG
