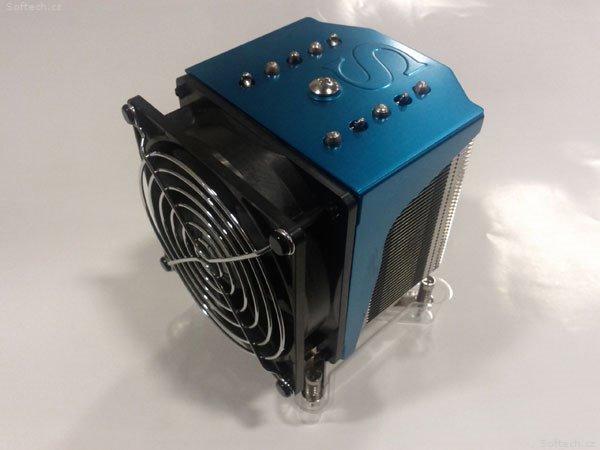

SUPERMICRO 4U Active CPU HS Socket H UP Systems (s.1151, 1200)

This CPU fan heat sink is designed for Supermicro 4U servers/workstations equipped with Intel Xeon E3-1200 v2/v3/v4/v5 series processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Manufacturer
Supermicro
Server Form Factor
4U
Cooling Type
Active
CPU Configuration
Uni Processor
Supported CPU SKU
Intel® Xeon® Processor E3-1200, E3-1200 v2, E3-1200 v3, E3-1200 v4, and E3-1200 v5 Series
Supported CPU Socket
FCLGA1150, FCLGA1151, FCLGA1155
Supported CPU TDP
Up to 95 Watts
Attached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 3,800 RPM
Acoustic Noise: 38.0 dB(A) at Rated Speed
Dimensions: 92L x 92H x 25W (mm)
Position: Front Side
MTBF/MTTF: 108,798 Hours
Search Terms
cpu fan
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
