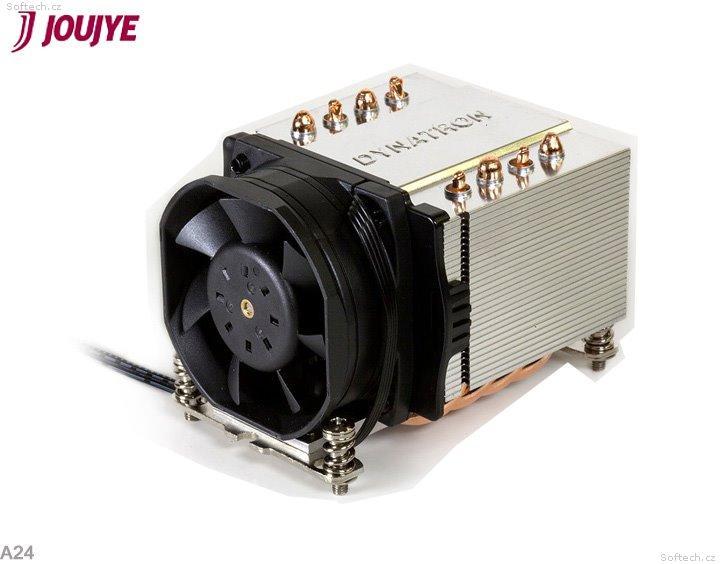

Dynatron A24 - Active Cooler for 2U Server & up for AMD® Socket AM4, AM5

SPECIFICATIONS:

Application

CPU
Recommend for AMD®
Socket
Socket AM4/AM5

Technical Data

Overall dimension
107 x 78 x 67 mm
Weight
400g

Heat Sink


Material
Aluminum Stacked Fin with Heat Pipes directly contact CPU

Fan

Model Number
DF126028BL - PWMG
Dimension
60 x 60 x 28 mm
Bearing
2 xBall
Rated Voltage
12 V
Speed
At Duty Cycle 0~20% : 1500±10% RPM
At Duty Cycle 50% : 3500±10% RPM
At Duty Cycle 100% : 7000 RPM Min.
Power
At Duty Cycle 0~20% : 0.60 W
At Duty Cycle 50% : 2.16 W
At Duty Cycle 100% : 7.20 W
Air Flow
At Duty Cycle 0~20% : 8.8 CFM
At Duty Cycle 50% : 20.3 CFM
At Duty Cycle 100% : 40.5 CFM
Noise Level
At Duty Cycle 0~20% : 16.0 dBA
At Duty Cycle 50% : 32.9 dBA
At Duty Cycle 100% : 47.5 dBA
Raited Static Pressure
At Duty Cycle 0~20% : 0.7 mm-H2O
At Duty Cycle 50% : 3.6 mm-H2O
At Duty Cycle 100% : 14.3 mm-H2O
Lead Wire Pin Out
Pin#1-Black(-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
