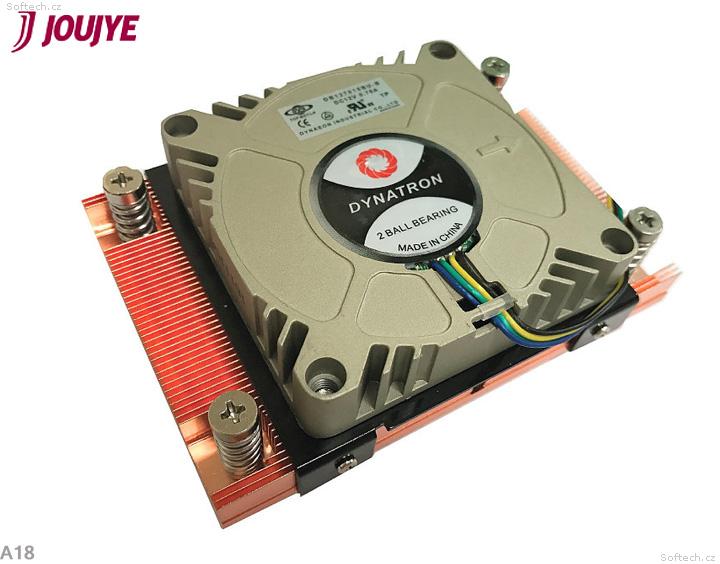

Dynatron A18 - Active 1U Cooler for AMD AM4, AM5 socket

SPECIFICATIONS:

Application

CPU
AMD Processor, Socket AM4
Active Cooler For 1U Server

Technical Data

Overall dimension
106 x 76 x 27.5mm
Weight
450g ± 5g

Heat Sink


Material
Copper 1100 with Skived Fins
Extra features
Fin Direction Perpendicular to System Airflow

Fan

Dimension
70 x 70 x 15mm
Speed
Rated Speed: 6000 ± 10% RPM
Bearing
Dual, Ball Bearing
Rated Voltage
12 V
Maximum Airflow
12.83 CFM
Air Flow
10.8 cfm
Noise Level
53.8 dBA
Lead Wire Pin Out
Pin1-Black (-)
Pin2-Red (+)
Pin3-Techometer/Signal output
