SUPERMICRO A+ Server 1U 1x SP3, 8x DDR4, 4x 3,5" (4xNVMe opt.), 2x500W(plat), 2x10GbE, IPMI

Specifications ?
Product SKUs

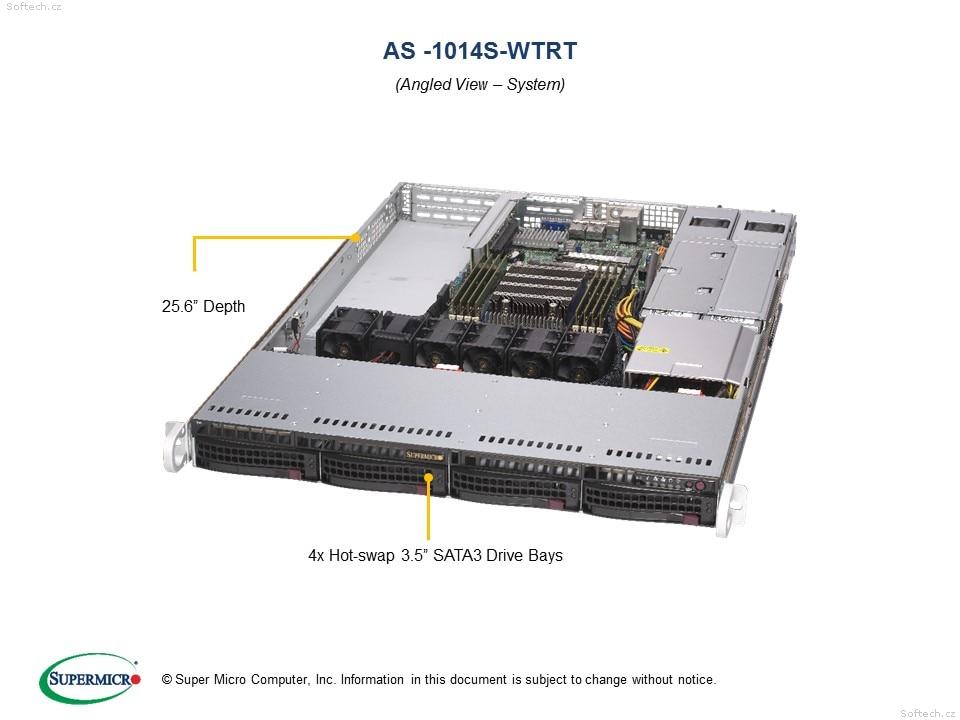

AS -1014S-WTRT A+ Server 1014S-WTRT (Black)
Motherboard
Super H12SSW-NT
Processor/Cache
CPU Single AMD EPYC™ 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
Socket SP3
Support CPU TDP up to 280W
Cores Up to 64 Cores
System Memory
Memory Capacity 8 DIMM slots
Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices
Chipset System on Chip
SATA SATA3 (6Gbps)
Network Controllers Dual 10GBase-T LAN with via Broadcom BCM57416
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video ASPEED AST2500 BMC
Input / Output
NVMe 4 U.2 NVMe Support via optional kit
SATA 4 SATA3 (6 Gbps) ports
LAN 2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB 5 USB 3.0 ports (4 rear, 1 Type A)
Video 1 VGA port
DOM 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type AMI 32Mb SPI Flash ROM
Management
Software Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations ACPI / APM Power Management
PC Health Monitoring
CPU Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor 1U Rackmount
Model CSE-815TS-R504WBP4
Dimensions and Weight
Height 1.7" (43mm)
Width 17.2" (437mm)
Depth 25.6" (650mm)
Package 23.5" (W) x 8.5" (H) x 33.7" (L)
Weight Gross Weight: 46 lbs (20.87kg)
Net Weight: 22 lbs (9.98kg)
Available Colors Black
Front Panel
Buttons Power On/Off button
UID button
LEDs Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED
Expansion Slots
PCI-Express 2 PCI-E 4.0 x16 (FHFL) slots
1 PCI-E 4.0 x16 (LP) slot
2 PCI-E?/?SATA 3.0 x2 NVMe M.2 slots
Drive Bays
Hot-swap 4 Hot-swap 3.5" SATA3 drive bays
Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
Peripheral 1 Slim DVD-ROM drive bay (optional)
Backplane
SAS/SATA/NVMe HDD Backplane
System Cooling
Fans 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC
Power Supply
500W Redundant Power Supplies with PMBus
Total Output Power 500W
Dimension
(W x H x L) 54.5 x 40.25 x 320 mm
Input 100-240Vac, 50-60Hz, 6.1-2.6A
+12V Max: 42A / Min: 0.5A
+5Vsb Max: 4A / Min: 0A
Output Type Gold Finger Connector Mating with Molex 45984-4343
With Power Distributor +5V: 25A
+3.3V: 12A
-12V: 0.6A
Certification Platinum Level Certified
Platinum Certified
[ Test Report ]
Operating Environment
RoHS RoHS Compliant
Environmental Spec. Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
