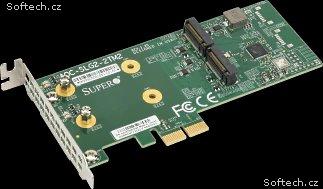

Supermicro 2x M.2 SATA HW RAID1 Carrier Card

Add-on Card
Supermicro M.2 SATA HW RAID1 Carrier Card
The Supermicro SATA M.2 Carrier CardAOC-SLG2-2TM2features 2 M-key connectors for 2x M.2 SATA3 SSDs. This carrier card integrates a RAID controller to provide mirror RAID protection. With HW RAID1 support, this new M.2 carrier is intended to offer another layer of redundancy for M.2 SSDs, typically used for OS support. This space- saving solution helps maximize the OS reliability and performance. It delivers acost-effective and reliableOS solution with SATA SSDs.
This product is only available through Supermicro.
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Key Features
RAID1 SATA M.2 Carrier Card
Supports 2x SATA3 M.2 connectors in the following lengths with adjustable standoffs: 80mm, & 42mm
Screw M3 x 0.5mm pitch, length 4.5mm
Supports onboard activity and status LEDs for each M.2 SSD
OS Support : Windows, Linux, and VMWare
Operating Temp: 0° to 55°C
Dimensions
H x L
2.71" x 5.79"
Validated Platforms
Servers/Serverboards
SYS-2029BT-HTR
