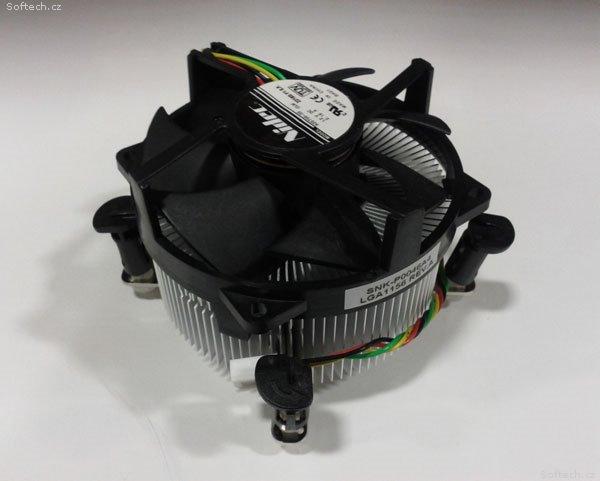

SUPERMICRO 2U Active CPU Heat Sink w, a Side-mount Fan for Intel Socket H {s1156, s1155, s1150] Series Motherboards

This CPU fan heat sink is designed for Supermicro 2U servers/workstations equipped with Intel® Xeon® Processor E3 Family, Xeon® Processor 3000 Sequence. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Manufacturer
Supermicro
Server Form Factor
2U
Cooling Type
Active
CPU Configuration
Uni Processor
Supported CPU SKU
Intel® Xeon® Processor E3 Family and Xeon® Processor 3000 Sequence
Supported CPU Socket
FCLGA1155, FCLGA1156
Supported CPU TDP
Up to 105 Watts
Attached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 5,000 RPM
Acoustic Noise: 38.7 dB(A) at Rated Speed
Dimensions: 60L x 60H x 25W (mm)
Position: Front Side
MTBF/MTTF: 496,099 at 40 C
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
