Popis produktu:
Key Features

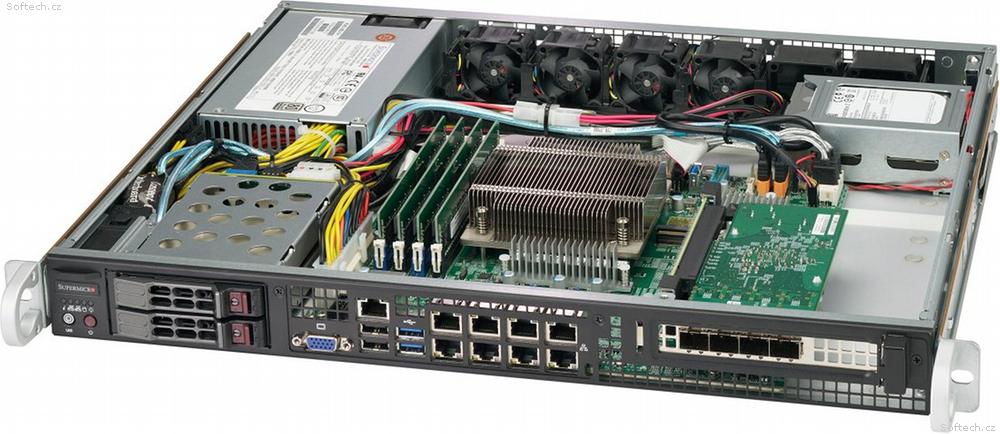

15" Mini 1U chassis support for maximum motherboard size - 12" x 13" E-ATX
1x Full-height & Half-length expansion slot(s)
2 x 2.5" hot-swap drive bay, optional 4 x 2.5" fixed Internal Drive with bracket
Power Switch, UID Button & LED Indicators
4 x 40mm x28mm PWM fan(s)
1U 350W Multi-output Power Supply Platinum Level
Components
Standard Parts List
Part Number
Qty
Description
HD Backplane
BPN-SAS3-826TQ-B2B
1
2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable(S)
CBL-0160L
1
US POWER CORD 16AWG, PB FREE
Cable(S)
CBL-0335L
1
FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
Fan(s)
FAN-0154L4
4
40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Front Panel
MCP-280-80901-0N
1
SC809 FRONT CONTROL PANEL ASSY
Cooling Fan & Accessory
MCP-320-00060-0N
1
Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12
Drive Tray(s)
MCP-220-00180-0B
2
2.5" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket)
Part(s)
MCP-340-00001-01
2
Dummy fan 40x28mm
Part(s)
MCP-260-00078-0B
1
1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
Power Supply & Accessory
PWS-350-1H
1
1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
Mounting Rail(s)
MCP-290-00102-0N
1 set
Outer rail, quick-release type, 25.6" to 33.05"
Mounting Rail(s)
MCP-290-00108-0B
1 set
Inner rail, front, short (quick) for 1U 17.2
Rear Window
MCP-240-51301-0N
1
Rear window for SC513B single PWS chassis
Optional Parts List
Part Number
Qty
Description
2.5" HDD Bracket
MCP-220-00137-0N
-
Dual 2.5 HDD bracket
Cable
CBL-0234L
-
4-PIN POWER SUPPLY Y-CABLE FOR HDD, 15CM, 20AWG
Cable
CBL-0481L
-
SATA,INT,ROUND,ST-ST,81CM,30AWG
Cable
CBL-CDAT-0662
-
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Cable
CBL-0206L
-
SATA,INT,ROUND,ST-ST,48CM,26AWG
