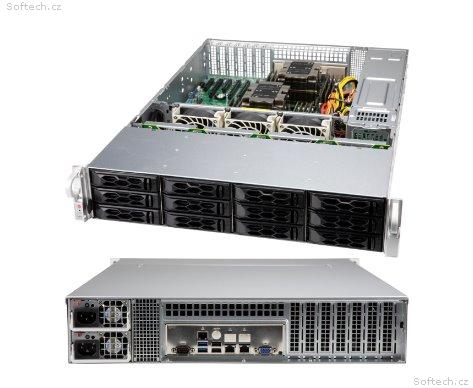

SUPERMICRO 2U chassis 12x 3,5" HS SAS3, SATA (Expander), 4x NVMe, 2x650W (80PLUS Platinum)

Product SKUs
CSE-LA26E1C4-R609LP SuperChassis LA26E1C4-R609LP
Form Factor
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height 3.5" (89 mm)
Width 17.2" (437 mm)
Depth 25.5" (647 mm)
Gross Weight 37 lbs (16.78 kg)
Packaging (W x H x L) 24" (610 mm) x 9" (229 mm) x 24" (610 mm)
Available Color Black
Expansion Slots
7 low-profile expansion slot(s)
Drive Bays
12 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3
Optional 2 x 2.5" hot-swap drive bay
Backplane
12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Systems Cooling
Fans 3 x 8cm high-performance PWM fan(s)
System Monitoring
Optional Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
600W / 650W 1U Redundant Power Supply
Power Efficiency 94%
Total Output Power and Input 600W with Input 100 - 127Vac
650W with Input 200 - 240Vac
650W with Input 200 - 240Vdc
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 336 x 76 x 40 mm
Output Type Backplanes (gold finger)
+12V Max: 50A (100Vac - 127Vac)
Max: 54.16A (200Vac - 240Vac)
Max: 54.16A (200 - 240)
+5Vsb Max: 4A / Min: 0A
Power Distributor PDB-PT826-L8824
O/P: 12V/75
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6
Certification Platinum Certified
Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI
CCC
CE/EMC
FCC
Components ?
Standard Parts List
Part Number Qty Description
HD Backplane BPN-SAS3-826EL1-N4 1 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Fan(s) FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Drive Tray(s) MCP-220-00184-0B 12 Black gen-9 tool-less cost-effective 3.5" HDD tray (no dummy)
Power Distributor PDB-PT826-L8824 1 2U cost effective PDB support up to 1200W.,RoHS
Power Supply & Accessory PWS-609P-1R2 2 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
Optional Parts List
Part Number Qty Description
Rail MCP-290-00053-0N - Rail set, quick/quick, default for 2,3U 17.2"W
Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B
Cable CBL-0160L - NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Air Shroud MCP-310-29001-0N - SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
Motherboard (for CSE- LA26E1C4-R609LP)
X11SPH-nCTF X11SPH-nCTPF X11DPH-T X11DPH-I
X11DPH-TQ X11SRL-F X11DPL-i
