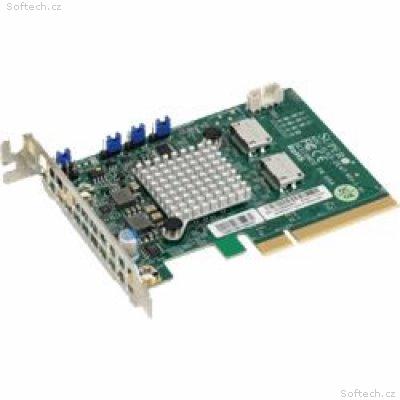

Supermicro dual-Port Gen-3 Internal NVMe Host Bus Adapter, retimer (2x Oculink)

Add-on Card
Supermicro dual-Port Gen-3 Internal NVMe Host Bus Adapter
The Supermicro NMVe AOC-SLG3-2E4T features two internal NVMe OCuLink connectors for high-performance storage connectivity. This HBA card is built on the latest PCIe NVMe retimer technology. Streamlined for the growing demand for increased data throughput and scalability requirements across the enterprise-class server platforms, this is a cost effective storage solution that delivers maximum performance and reliability. Perfect for "near-line cache storage solutions" which allows data to be staged before moving down to its intended backend storage.
The use of this Retimer Add-on Card requires motherboard (BIOS) configuration. Please refer to the User’s Guide for the appropriate settings.
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Key Features
• Dual port PCI-E x8 Gen-3 NVMe controller
• 2 internal lanes per OCuLink port
• Supports 2 physical NVMe Devices
• PCI-E Retimer
• OS Support: Windows, Linux, VMware
• Uses 2 OCuLink Connectors
• Operating Temp: 10° to 55°C
Dimensions
L x H
3.79" x 2.71"
Validated Platforms
Servers/Serverboards
SSG-6048R-E1CR60N
SYS-7049A-T
SYS-F619P2-RTN
H11DSi
H11DSI-NT
H11DSI-T
X10DSC+
X10SRH-CF
X10SRH-CLN4F
X11DPL-i
X11SPL-F
