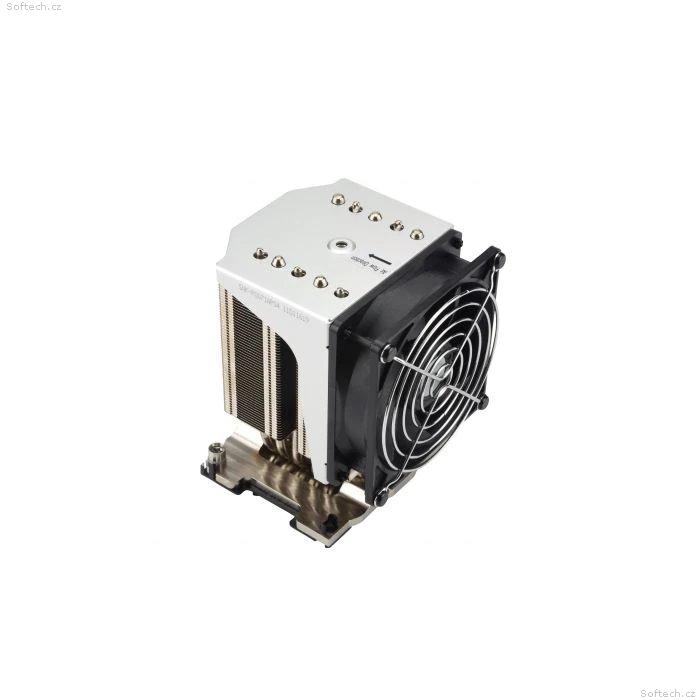

Supermicro 4U Active CPU HS Supporting SYS-5049A-T Extreme X11 UP WS

4U Active CPU Heat Sink
SYS-5049A-T extreme X11 UP workstation
Socket LGA3647-0
Supermicro Certified
Manufacturer
Supermicro
Server Form Factor
4U
Cooling Type
Active
CPU Configuration
Uni Processor
Supported CPU SKU
Intel® Xeon® Scalable Processors
Supported CPU Socket
FCLGA3647-0 (Narrow Mounting Mechanism)
Supported CPU TDP
Up to 205 Watts
Attached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 3,800 RPM
Acoustic Noise: 38.0 dB(A) at Rated Speed
Fan Dimensions: 92L x 92H x 25W (mm)
Position: Front Side
MTBF/MTTF: 108,798 Hours
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
