Popis produktu:
Key Features
11th Generation Intel® Core™ Processors (i3/i5/i7/i9), Pentium® and Celeron® Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Intel® Z590
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
M.2 Interface:2 PCI-E 3.0 x4 and 1 PCI-E 4.0 x4
M.2 Form Factor:2260/2280/22110 M.2 Key:M-Key
2 attached to PCH by PCI-E3.0x 4, 1 attached to CPU by PCI-E4.0x 4), support RAID 0,1 and 5 by RST; M.2-E1 port pre-installed one Intel Wi-Fi 6(802.11ax)+BT5.1 module
1 HDMI port, 1 DP (DisplayPort) port, DP version 1.4a, HDMI version 2.0b
Single LAN with Intel® single Ethernet PHY i219V 1Gb
Single LAN with Marvell AQC113C 10Gb
Specifications
Product SKUs

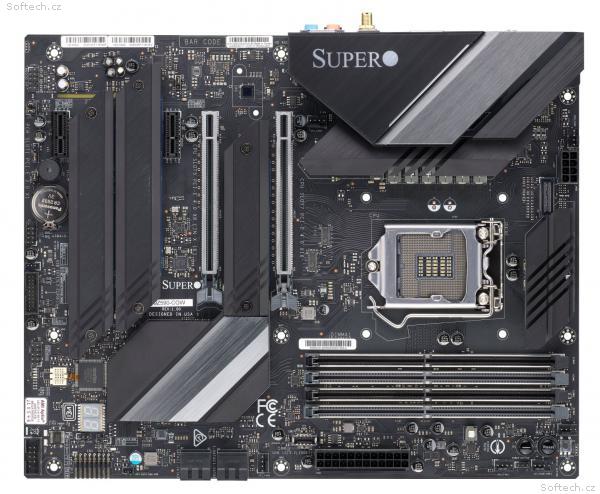

MBD-C9Z590-CGW
C9Z590-CGW
Physical Stats
Form Factor
ATX
Dimensions
12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU
11th Generation Intel® Core™ Processors (i3/i5/i7/i9), Pentium® and Celeron® Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
System Memory
Memory Capacity
Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
Memory Type
128GB DDR4 Unbufferred Non ECC UDIMM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
On-Board Devices
Chipset
Intel® Z590
Network Controllers
Single LAN with Intel® single Ethernet PHY i219V
1Gb
Single LAN with Marvell AQC113C
10Gb
Audio
ALC 1220 7.1 HD Audio
Graphics
DP version 1.4a, HDMI version 2.0b
Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 10 Gigabit Ethernet LAN ports
USB
6 USB 2.0 ports (4 rear + 2 via headers)
2 USB 3.2 Gen1 ports (2 via headers)
2 USB 3.2 Gen2 ports (2 Rear Type A
3 USB 3.2 Gen2x2 ports (2 Type C)
Video Output
1 HDMI port, 1 DP (DisplayPort) port,
DP version 1.4a, HDMI version 2.0b
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
M.2
M.2 Interface: 2 PCI-E 3.0 x4 and 1 PCI-E 4.0 x4
Form Factor: 2260/2280/22110
Key: M-Key
2 attached to PCH by PCI-E3.0x 4, 1 attached to CPU by PCI-E4.0x 4), support RAID 0,1 and 5 by RST; M.2-E1 port pre-installed one Intel Wi-Fi 6(802.11ax)+BT5.1 module
System BIOS
BIOS Type
256Mb SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
SMBIOS 3.0 or later
Riser card auto-detection support
Management
Software
SuperDoctor® 5
System Management Software
SuperDoctor 5
Power Configurations
ACPI Power Management
PC Health Monitoring
Voltage
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Temperature
N/A
LED
N/A
Other Features
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
Operating Environment
Operating Temperature Range
0°C ~ 50°C (32°F ~ 122°F)
Parts List
Parts List (Bulk Package)
Name
Part Number
Qty
Description
Motherboard
MBD-C9Z590-CGW
1
C9Z590-CGW Motherboard
--
Parts List (Retail Package)
Name
Part Number
Qty
Description
Motherboard
MBD-C9Z590-CGW
1
C9Z590-CGW Motherboard
Quick Reference Guide
MNL-2335-QRG
1
C9Z590-CG(W) Quick Reference Guide
Driver CD
1
C9Z590-CG(W) Driver CD
SATA Cables
CBL-SAST-1000-2
2
SATA Cables
SATA Cables
CBL-SAST-1001-2
2
Right-Angle SATA Cables
BACK PLATE(I/O Shield)
MCP-260-00161-0N
1
C9Z590-CG(W) I/O shield
S-Connector
JMP-0010L-0000-PRX
1
S-connector (Front Control Panel Connector/Adapter)
Intel WiFi6+BT5.1 Antenna
CBL-ANTDB-SMA
2
WiFi+BT Antenna
Chassis(Optimized forC9Z590-CGW)
Embedded Compact
1U
2U
3U
Mid/Mini-Tower
4U/Tower
SCGS5A-754K
SCGS5A-753B
SC732D3-1200B
SC732D3-903B
= Most optimized Chassis for SuperServer Configuration
Blue color
= Compatible
Green color
= Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
