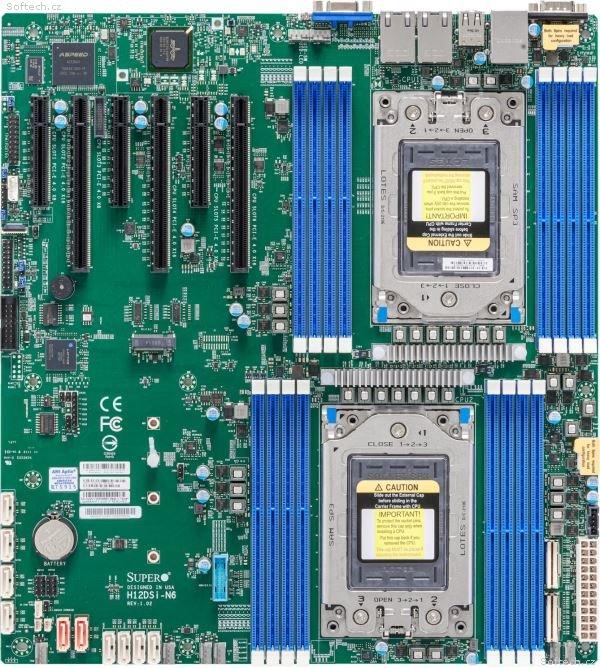

SUPERMICRO MB 2xSP3 (7002, 7003),16x DDR4,10xSATA3, 4x NVMe, 1xM.2, 6xPCIe4.0 (3 x16, 3 x8), IPMI, 2x LAN

Key Features
1.Dual AMD EPYC™ 7003/7002 Series Processors
2.4TB Registered ECC DDR43200MHz SDRAM in 16 DIMMs
3.Expansion slots: 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots
M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key
4.10 SATA3, 2 SATADOM, 4 NVMe
5.Dual Gigabit LAN ports, 1 dedicated IPMI LAN Port
6.ASPEED AST2600 BMC graphics
7.2 USB 2.0 ports (rear), 4 USB 3.0 ports (2 rear, 2 headers)
8.8x 4-pin PWM Fans & Speed control
Specifications
Product SKUs
MBD-H12DSi-N6
H12DSi-N6
Physical Stats
Form Factor
EATX
Dimensions
12" x 13.05" (30.5cm x 33.1cm)
Processor/Chipset
CPU
Dual AMD EPYC™ 7003/7002 Series Processors
Socket SP3
Cores
Up to 64 Cores
Chipset
System on Chip
System Memory
Memory Capacity
16 DIMM slots
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v. 2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2600 BMC
Network Controllers
Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA
ASPEED AST2600 BMC
Input / Output
SATA
10 SATA3 (6 Gbps) ports
LAN
2x 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 ports (rear)
4 USB 3.0 ports (2 rear, 2 headers)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connectors
4 PCI-E 4.0 NVMe x4 internal ports
TPM 2.0 header
