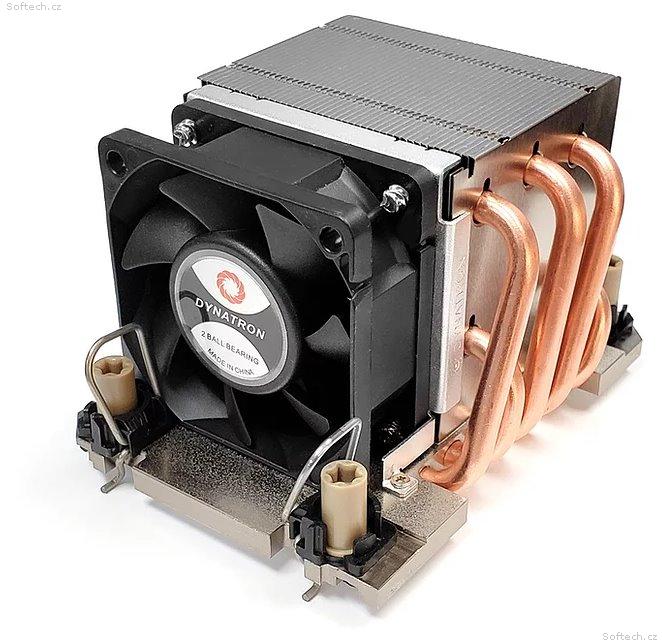

Dynatron N11 - 2U Active Cooler for Intel 4189, up to 270W

Additional Information
CPU Support
Intel
CPU Socket
FCLGA 4189-4/5(Socket P4/P5 or P+)
Solution
2U Server and Up
Dimensions
113.0 x 82.0 x 66.0 mm
Weight
460 g
Material
Aluminum Fin stack with Heat Pipe embedded
Fan Dimension
60 x 60 x 25 mm
Speed
Up to 8500 RPM
Rated Voltage
12V
Bearing
2 Ball Bearing
Power
At Duty Cycle 20%: 0.90 W
At Duty Cycle 50%: 2.04 W
At Duty Cycle 100%: 5.40 W
Air Flow
At Duty Cycle 20%: 8.12 CFM
At Duty Cycle 50%: 20.31 CFM
At Duty Cycle 100%: 40.60 CFM
Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 35 dBA
At Duty Cycle 100%: 50 dBA
Air Pressure
At Duty Cycle 20%: 0.58mm-H2O
At Duty Cycle 50%: 3.65 mm-H2O
At Duty Cycle 100%: 14.58 mm-H2O
Lead Wire Pin Out
Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-printed
*All product specifications and product images are subject to change without notice.
