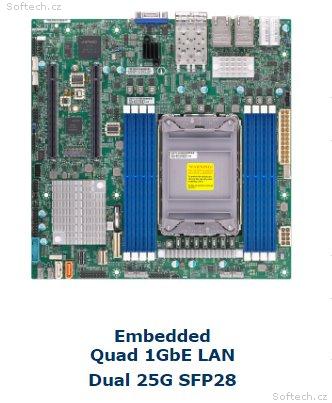

Popis produktu:
Key Features
3rd Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel® C621A
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane? Persistent Memory 200 Series, in 8 DIMM slots
2 PCI-E 4.0 x16
1 PCI-E 4.0 NVMe x8 SlimSAS Internal Port
1 PCI-E 4.0 NVMe x4 SlimSAS Internal Port
1 OCuLink Connector (4 SATA/PCI-E 3.0 x4)
1 M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)
Quad 1G RJ45 with Intel® I350-AM4
Dual 25G SFP28 with Broadcom BCM57414
4 USB 3.2 Gen 1 (2 Rear, 2 via Header),
4 USB 2.0 (Headers)
Supports 12V DC power input
Specifications
Product SKUs
MBD-X12SPZ-SPLN6F
X12SPZ-SPLN6F
Physical Stats
Form Factor
Micro-ATX
Dimensions
9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU
3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Cores / Cache
Up to 40 cores
System Memory
Memory Capacity
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
Memory Type
3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel® C621A
SATA
Intel® C621A controller for 6 SATA3 (6 Gbps) ports;
4 SATA ports via OCuLink; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Network Controllers
Quad LAN with 1GbE with Intel® I350-AM4
Dual LAN with Broadcom BCM57414 25G SFP28
Input / Output
LAN
4 RJ45 Gigabit Ethernet LAN ports
2 SFP28 25 Gigabit Ethernet LAN ports
USB
4 USB 2.0 ports (4 via headers)
4 USB 3.2 Gen1 ports (2 rear + 2 via headers)
Video Output
1 VGA port
Serial Port / Header
1 COM Port (1 header)
TPM
TPM Header & Chip both
Expansion Slots
PCI-E
2 PCI-E 4.0 x16
M.2
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
System BIOS
BIOS Type
256Mb SPI Flash with AMI BIOS
BIOS Features
ACPI 6.2
UEFI 2.8
SMBIOS 2.8
SMBIOS 3.3 or later
Plug and Play (PnP)
PCI FW 3.0
Management
Software
Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
+12V DC Power Input
ACPI Power Management
ATX Power connector
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
PC Health Monitoring
Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT
Temperature
CPU thermal trip support
LED
Power LED, UID/Remote UID
Other Features
12V DC or ATX Power Source, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS
Operating Environment
Operating Temperature Range
0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
10% ~ 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name
Part Number
Qty
Description
Motherboard
MBD-X12SPZ-SPLN6F
1
X12SPZ-SPLN6F Motherboard
SATA Cables
CBL-0044L
2
57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00154-0N
1
Standard I/O Shield for X12SPZ
CPU Retention Module
SKT-1205L-P4IC-FXC
1
Socket P4 LGA4189 Carrier
Parts List (Retail Package)
Name
Part Number
Qty
Description
Motherboard
MBD-X12SPZ-SPLN6F
1
X12SPZ-SPLN6F Motherboard
SATA Cables
CBL-0044L
2
57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00154-0N
1
Standard I/O Shield for X12SPZ
QRG
MNL-2291-QRG
1
Motherboard Quick Reference Guide
CPU Retention Module
SKT-1205L-P4IC-FXC
1
Socket P4 LGA4189 Carrier
Optional Parts List
Name
Part Number
Qty
Description
1U I/O Shield
MCP-260-00155-0N
--
Standard 1U I/O Shield with EMI Gasket
TPM security module
AOM-TPM-9670V
--
SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module
AOM-TPM-9671V
--
SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
x8 SlimSAS to 2x U.2 Cable
CBL-SAST-0953-1
--
55CM Slimline x8 to PCIe 2x SFF-8639
x4 SlimSAS to U.2 Cable
CBL-SAST-1240A-85
--
40CM Slimline x4 to PCIe SFF-8639
OCuLink to U.2 Cable
CBL-SAST-0956
--
55CM OCuLink to U.2 Cable with Molex Power Header
OCuLink to 4x SATA Cable
CBL-SAST-0933
--
50CM OCuLink to 4x SATA Cable
Chassis(Optimized for
X12SPZ-SPLN6F
)
Embedded Compact
1U
2U
3U
Mid/Mini-Tower
4U/Tower
SC515M-R804
SC113MFAC2-605CB
= Most optimized Chassis for SuperServer Configuration
Blue color
= Compatible
Green color
= Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
