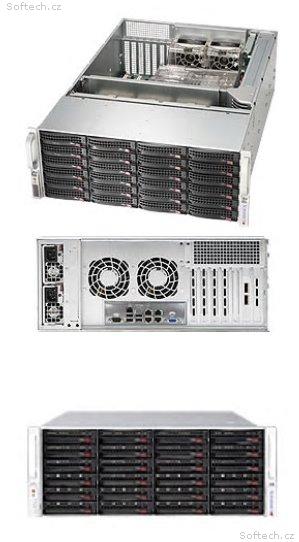

SUPERMICRO 4U chassis 24x 3,5" HS SAS, SATA (6x SFF 8087)+2x2,5" volitelný,2x920W (80PLUS Platinum)

Key Features
High Efficiency Power
High Storage Capacity

4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX
24 x 3.5" hot-swap drive bay
24-port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD
1U 920W Redundant Platinum Level Power Supply
7 full-height & full-length expansion slot(s)
3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 8cm hot-swap exhaust fan(s) & air shroud
Specifications

Product SKUs

CSE-846BA-R920B
SuperChassis 846BA-R920B

Form Factor

4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX

Processor Support

Dual and Single Intel® and AMD processors

Dimensions

Height
Width
Depth
Gross Weight
75 lbs (34.02 kg)
Packaging (W x H x L)
Available Color
Black

Expansion Slots

7 full-height & full-length expansion slot(s)

Drive Bays


Backplane

24-port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD

Peripheral Drives


Front Panel

Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Systems Cooling

Fans
3 x 8cm hot-swap redundant PWM cooling fan(s)
2 x 8cm hot-swap exhaust fan(s) & air shroud

System Monitoring

Chassis intrusion switch

Operating Environment (System)

Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)

Power Supply
1U 920W Redundant Platinum Level Power Supply
Power Efficiency
94%
Total Output Power and Input
920W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
-12V
Max: NAA
+12V
Max: 75A / Min: 0.5A (100Vac - 240Vac)
+5Vsb
Max: 4A / Min: 0A
+12Vsb
Max: NAA
Power Distributor
PDB-PT846-2824
O/P: 12V/135
+5V Max: 50
+3.3V Max: 24
-12V Max: 0.6
Certification
  Platinum Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL
Components

Standard Parts List


Part Number
Qty
Description
Air Shroud
MCP-310-49003-0N
1
SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
HD Backplane
BPN-SAS-846A
1
24-port 4U SAS 6Gbps direct-attached backplane, support up to 24x 3.5-inch SAS2/SATA3 HDD/SSD
Cable(s)
CBL-0071L
1
Cable(s)
CBL-0160L
2
US POWER CORD 16AWG, PB FREE
Cable(s)
CBL-0217L
1
16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
Part(s)
MCP-120-00061-0N
7
Blank FH L-bracket (5x5 square hole)
Part(s)
MCP-230-82501-0N
1
Top cover for SC213,216,825,826,835,836,936,846
Part(s)
MCP-290-00088-0N
1
SC119 Intrusion assembly
Part(s)
MCP-290-84603-0N
1
SC846 HDD Backplane Bracket
Part(s)
MCP-290-84608-0N
1
Dual HDD opening dummy cover for 846B chassis
Fan(s)
FAN-0125L4
2
80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
Fan(s)
FAN-0127L4
3
80x80x38 mm 7K RPM SC846 Middle Fan w/ Housing
Front Panel
MCP-280-82601-0N
1
Front control board adapter (TB826) for SC216,826,936,846
Drive Tray(s)
MCP-220-00075-0B
24
Power Distributor
PDB-PT846-2824
1
PDB with 23pairs input connector support SC846B
Power Supply & Accessory
PWS-920P-SQ
2
920W 1U Redundant PWS W/ Quiet Mode
Power Supply & Accessory
MCP-290-84604-0N
1
SC846 PDB Cover
Mounting Rail(s)
MCP-290-00057-0N
1 set
Mounting Rail(s)
MCP-410-00007-0N
1
Rail screw bag
Rear Window
MCP-240-84602-0N
1

Optional Parts List


Part Number
Qty
Description
HDD Tray
MCP-220-84606-0N
-
Optional HDD kit for SC846BA/E16/E26 chassis only

MCP-310-00033-01
-

SATA DVD Kit
MCP-220-84607-0N
-
Rear side slim DVD kit for 846B chassis
HDD Tray Converter
MCP-220-00118-0B
-
Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
Short Rail
MCP-290-00058-0N
-


Motherboard (for CSE- 846BA-R920B)

X9DR3-LN4F+
X9DRi-LN4F+
X9DR7-TF+
X9DRE-TF+
X9DR7-LN4F (-JBOD)
X9DRE-LN4F
X9DRH-7F
X9DRH-7TF
X9DRH-iF
X9DRH-iTF
X9DRD-7LN4F-JBOD
X9DRD-EF
X9DRD-7LN4F
X9DRH-iF-NV
X10DRi-LN4+
X10DRi-T4+
X10DRi
X10DRi-T
X10DAi
X10DAC
X10DAX

 = Most optimized Chassis for SuperServer Configuration
Blue color
 = Compatible
Green color
 = Global SKU & Compatible
Red dot &
green color
 = Optimized + Global SKU
