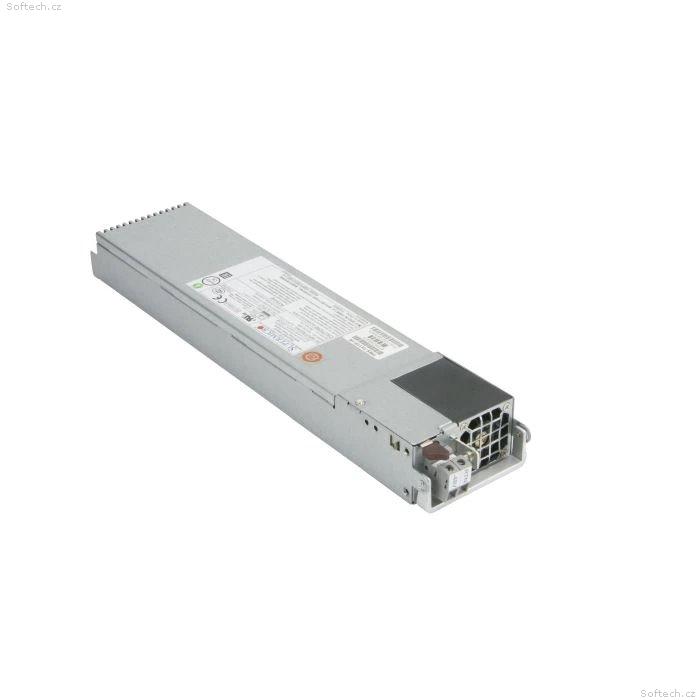

Supermicro 1U redundant 850, 1010W 1U -48V DC Power Supply 90%

Detailed Specification
More Information
Total Power Output
850W / 1010W
Type
Module
Type of Power Supply
-48Vdc Power Supply
Form Factor
1U
Dimension (W x H x L)
76 x 40 x 346mm
+5V
N/A
+12V
70/83A
+3.3V
N/A
5V Standby
4A
Input Voltage Range
850W Input: -36 to -42Vdc; 1010W Input: -43 to -76Vdc
Input Frequency Range
N/A
Input Current Range
850W Input: 30-25A; 1010W Input: 30-17A
Output Type
Gold Finger (19 Pair Connector)
8Pin / 4Pin (12V) Connector
N/A
PFC
No
Voltage / Current
Yes
Energy Efficiency
90% Typical
80 Plus Certification
N/A
Validated Chassis
CSE-216E16-R1010LPB
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
