SUPERMICRO Add-on-Module with LSI 3108, SAS-3, Gen-3 12Gb, ROC, RAID 0, 1, 5, 6, 10, 50, 60, 2GB cache, 2x SFF-8643

Add-on Module

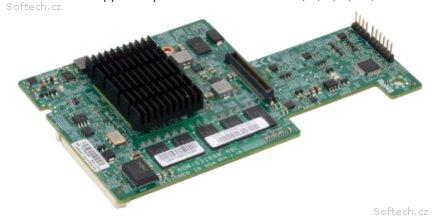

Supermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Mezzanine Card
The Supermicro MegaRAID Low ProfileAOM-S3108M-H8Lfeatures 8 internal SAS connectors for high-performance storage connectivity. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It deliverscost effectivestorage solutions using SATA drives andmaximum performance and reliabilitywith SAS drives.
With the option of SuperCap/TFM unit, this providescached data protectionand allows system builders to protect cached data during power failures.
Optional Cachecade feature significantly boosts systems performance and minimize rebuild times.
TheAOM-S3108M-H8Lsupports up to240 HDDw/ RAID 0, 1, 5, 6, 10, 50 and 60.
To order, contact your distributor. This product is only available through Supermicro.
Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Key Features
• Broadcom 3108 8-port PCI-E SAS-3 controller
• 8-port (8 internal) 12Gb/s per port
• Supports RAID 0, 1, 5, 6, 10, 50, 60
• On board hardware IO Processor
• 2GB 1866MHz DDR3 on-card cache
• MegaRAID configuration and management utilities
• Power management support
• SAS transfer rates up to 12Gb/s and SATA rates up to 6Gp/s
• Optional Cachecade feature for higher performance
• Supports SSP, SMP, STP and SATA protocols
• Optional Supercap/TFM Unit for cached data protection
(BTR-CV3108-U1) - operating temperature (Ambient)
from 10°C - 55°C
• OS Support : Windows 2012, 2k8 64/32 bit, Red Hat
Enterprise and SUSE Linux
• Power Usage 16W
Dimensions
H x L
3.2" x 5.2"
Tested Motherboards and Servers
Motherboards
X10DSC+
Tested Hard Drives
Tested
Tested HDD List]
