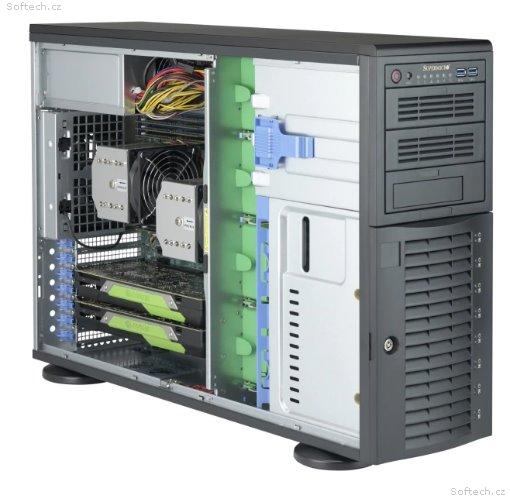

SUPERMICRO Tower, 4U 8x 3,5" HS SAS, SATA, 2x 5,25", 1x 5,25" pro 3,5", 1200W (80PLUS Platinum), superquiet

8x 3.5"/2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
Whisper-Quiet (<27dB)
Front HDD Door Lock & Side Panel Intrusion Switch
Front I/O Ports: 2x USB 3.0
2x 8cm PWM Fans & 1x 9cm Rear PWM Fan
4U / Full Tower Chassis Supports max. Motherboard, Sizes – E-ATX 12" x 13"/ATX/Micro ATX
1200WPlatinum LevelCertified High-Efficiency Power Supply
3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives
Resources
Optimization
Specifications
Product SKUs
CSE-743AC-1K26B-SQ
SuperChassis 743AC-1K26B-SQ
Form Factor
4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height
17.8" (452 mm)
Width
7" (178 mm)
Depth
25.5" (647 mm)
Gross Weight
56 lbs (25.4 kg)
Net Weight
53 lbs (24.04 kg)
Packaging (W x H x L)
24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)
Available Color
Black
Expansion Slots
7x Full-height, Full-length expansion slot(s)
Drive Bays
8x 3.5"/2.5" hot-swap SAS drive bay with SES3
Backplane
8-Port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
Peripheral Drives
2x standard 5.25" drive bay
90 degree rotatable drive cage
Front Panel
Button
Power On/Off button
System Reset button
LED
Power status LED
HDD activity LED
2 Network Activity LEDs
Unit Identification (UID) LED
Fan Fail/System Over Heat LED
Port
2x USB 3.0 Port(s)
Systems Cooling
Fans
1x 92mm PWM Rear fan(s)
2x 80mm PWM Chassis Middle Fans
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1200W PS2 Multi-output power supply
Power Efficiency
94%
Total Output Power and Input
1200W with Input 120 - 240Vac
1000W with Input 100 - 120Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
185 x 150 x 86 mm
Output Type
24pin ATX
-12V
Max: 0.3A / Min: 0A
+12V
Max: 99A / Min: 1A (120Vac - 240Vac)
Max: 83A / Min: 1A (100Vac - 120Vac)
+5V
Max: 20A / Min: 0.3A
+3.3V
Max: 20A / Min: 0.3A
+5Vsb
Max: 3A / Min: 0A
Certification
Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
UL/CB
Components
Standard Parts List
Part Number
Qty
Description
HD Backplane
BPN-SAS3-743A
1
8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
Cable(s)
CBL-0084
1
16 PIN FRONT CTRL SPLIT CONVECTOR 6"
Cable(s)
CBL-0087
1
CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(s)
CBL-0160L
1
US POWER CORD 16AWG, PB FREE
Cable(s)
CBL-SAST-0631
2
Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
Fan(s)
FAN-0103L4
1
92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
Fan(s)
FAN-0104L4
2
80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
Drive Tray(s)
MCP-220-00193-0N
8
SC743/SC745/SC822/SC823 Gen2 2.5"/3.5" 2-in-1 HDD tray
Power Supply & Accessory
PWS-1K26P-PQ
1
1000W/1200W PS2 Multi output power supply with modular cable
Optional Parts List
Part Number
Qty
Description
Cable
CBL-0454L
-
USB 3.0 to 2.0 Adapter Cable 30cm (19 pin Male to 9 pin Female). 28/24AWG
-
8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Heatsink / Retention
-
-
Please refer to our Thermal Components Matrix
Mounting Rail
CSE-PT26L-(B)
-
Peripheral Drive(s)
DVM-LITE-DVDRW24-HBT
-
BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Motherboard (for CSE-743AC-1K26B-SQ)
X12SPA-TF
= Most optimized Chassis for SuperServer Configuration
Blue color
= Compatible
Green color
= Global SKU & Compatible
Red dot &
green color
= Optimized + Global SKU
