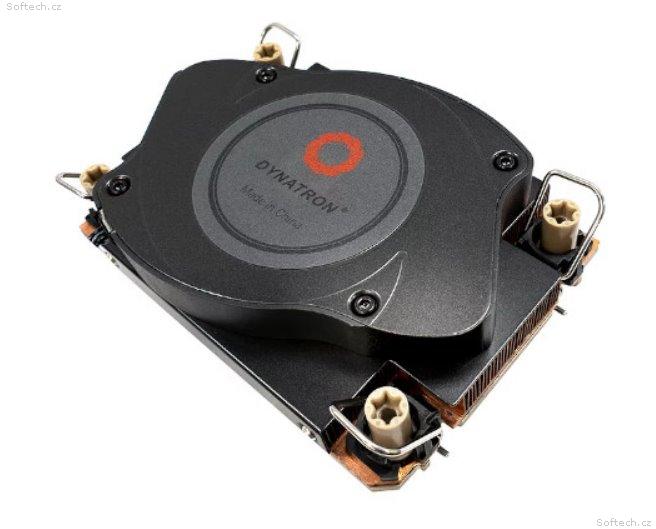

Dynatron N3 - 1U Actiive Cooler for Intel 4189, up to 205W

N3
Recommend for Intel® Whitley Platform Cooper Lake and Ice Lake Processors, LGA 4189 sockets, Active Cooler for 1U Server, Copper Heatsink with Vapor Chamber Base, Steel PWM Blower, Support 205 Watts CPU Power Heat Dissipation.
Additional Information
CPU Support
Intel
CPU Socket
FCLGA 4189-4/5(Socket P4/P5 or P+)
Solution
1U Server and Up
Dimensions
113.0 x 80 x 27 mm
Weight
410 g
Material
Copper1100 Heatsink with Vapor Chamber Base
Fan Dimension
80 x 13 mm
Speed
At Duty Cycle 0~20%: 2000 ± 200 RPM
At Duty Cycle 50%: 4900 ± 10% RPM
At Duty Cycle 100%: 8600 ± 10% RPM
Rated Voltage
12V
Bearing
2 Ball Bearing
Power
At Duty Cycle 20%: 1.08 W
At Duty Cycle 50%: 4.7 W
At Duty Cycle 100%: 23.45 W
Air Flow
At Duty Cycle 20%: 5.59 CFM
At Duty Cycle 50%: 14.76 CFM
At Duty Cycle 100%: 26.25 CFM
Noise Level
At Duty Cycle 20%: 23.3 dBA
At Duty Cycle 50%: 43.5 dBA
At Duty Cycle 100%: 62.2 dBA
Air Pressure
At Duty Cycle 20%: 3.69 mm-H2O
At Duty Cycle 50%: 25.28 mm-H2O
At Duty Cycle 100%: 89.80 mm-H2O
Lead Wire Pin Out
Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-printed
*All product specifications and product images are subject to change without notice.
