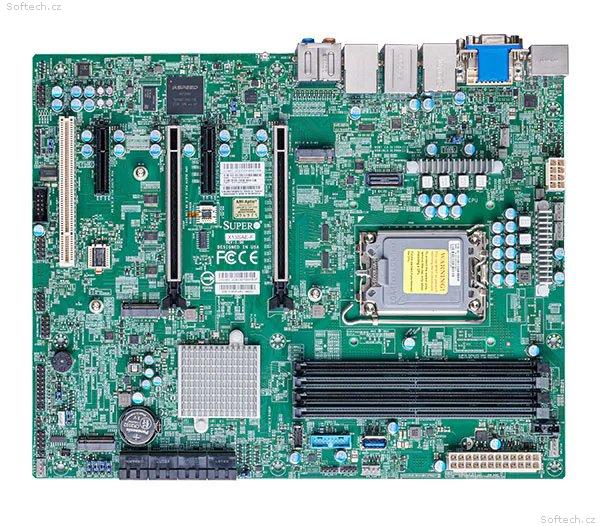

SUPERMICRO MB LGA1700 (core 12.g), W680,4xDDR5,8xSATA3,2xM.2,2x PCIe5.0 x16, 2x PCIe3.0 x4, PCI, HDMI, DP, DVI, Audio, 2x LAN

Key Features
12th Generation Intel® Core™ i3/i5/i7/i9 Processors, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
Intel® W680
Single LAN with Intel® Ethernet i225LM
Single LAN with Intel® PHY I219LM LAN controller
for AMT/vPro
Single LAN with RTL8211
Dedicated LAN for IPMI
2 PCI-E 5.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x4
1 - 5V PCI 32bit
M.2 Interface:3 PCI-E 4.0 x4, RAID 0,1,5
M.2 Form Factor:2280
M.2 Key:M-Key
128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
Intel® W680 controller for8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 DP 1.4a port, 1 HDMI 2.1 port, 1 DVI - D port
