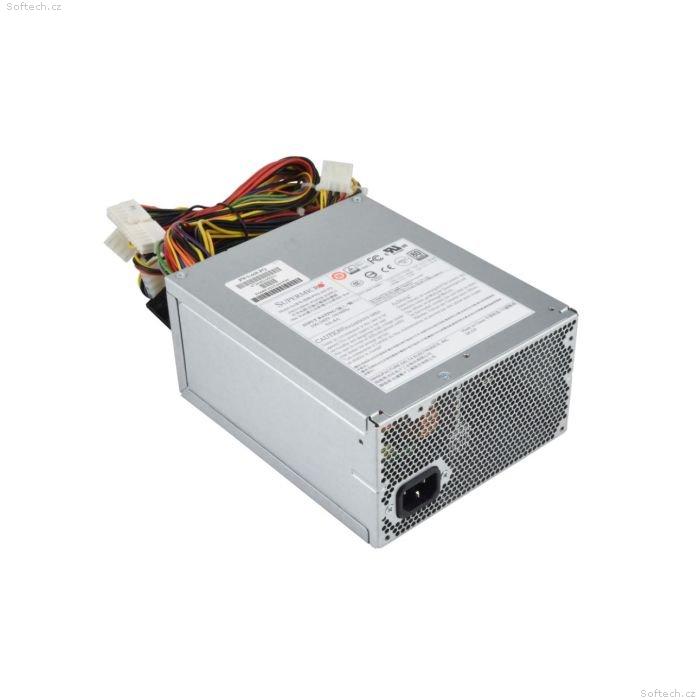

Supermicro 668W Multi-Output PS2, ATX Power Supply 80+ platinum

The Supermicro PWS-668-PQ is an 80 Plus level power supply capable of continuously supplying 668W output power at 92% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your desktop or workstation but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. All materials contained comply with RoHS requirements and is certified by Supermicro.
More Information
Total Power Output
668W
Type
Single
Type of Power Supply
Power Supply
Form Factor
Mid-Tower
Dimension (W x H x L)
150 x 86 x 185 mm
+5V
20A
+12V
54A
+3.3V
15A
5V Standby
2A
Input Voltage Range
100-240Vac / 668W
Input Frequency Range
50-60Hz
Input Current Range
8A
Output Type
24Pin ATX Cable Output
8Pin / 4Pin (12V) Connector
24Pin ATX connector 8Pin 12V connector 4Pin 12V connector
PFC
-
Voltage / Current
-
Energy Efficiency
-
80 Plus Certification
80 Plus Platinum
Validated Systems
SYS-5039C-T
Validated Chassis
CSE-733TQ-668B, CSE-743AC-668B, CSE-842TQC-668B
Search Terms
No
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
