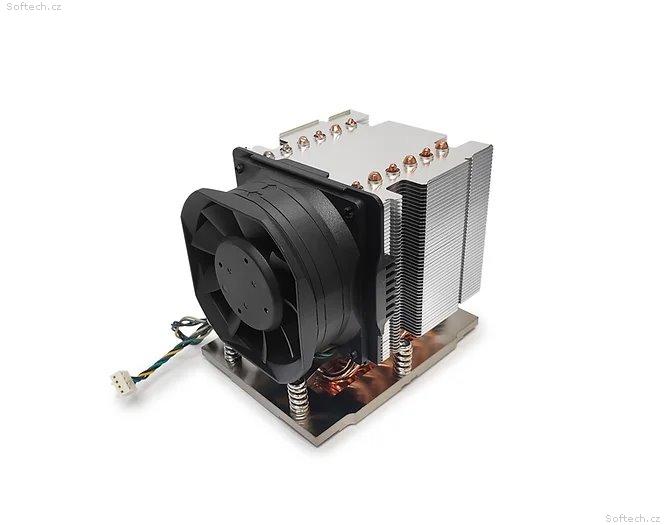

Dynatron J12 - Active 3U Cooler for AMD SP5 socket, up to 320W

Recommend for AMD® Genoa® Processor Family, Socket SP5, Aluminum Stacked Fins with Heat Pipes and Copper Heat Spreader Embedded in Aluminum Heatsink Base, Support up to 320 Watts CPU Power Heat Dissipation.
Additional Information
CPU Support
AMD®
CPU Socket
Genoa®, Socket SP5
Solution
3U Server and Up
Dimensions
118.0 x 92.4 x 105.0 mm
Weight
798 g
Material
Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Aluminum Heatsink Base
Fan Dimension
80 x 80 x 38 mm
Speed
At Duty Cycle 20%: 2400 ± 200 RPM
At Duty Cycle 50%: 4800 ± 10% RPM
At Duty Cycle 100%: 8000 ± 10% RPM
Rated Voltage
12V
Bearing
Double Ball
Power
At Duty Cycle 20%: 1.2 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 W
Air Flow
At Duty Cycle 0~20%: 32.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFM
Noise Level
At Duty Cycle 20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.40 dBA
Air Pressure
At Duty Cycle 20%: 1.39 mm-H2O
At Duty Cycle 50%: 5.97 mm-H2O
At Duty Cycle 100%: 34.06 mm-H2O
Lead Wire Pin Out
Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-printed
*All product specifications and product images are subject to change without notice.
