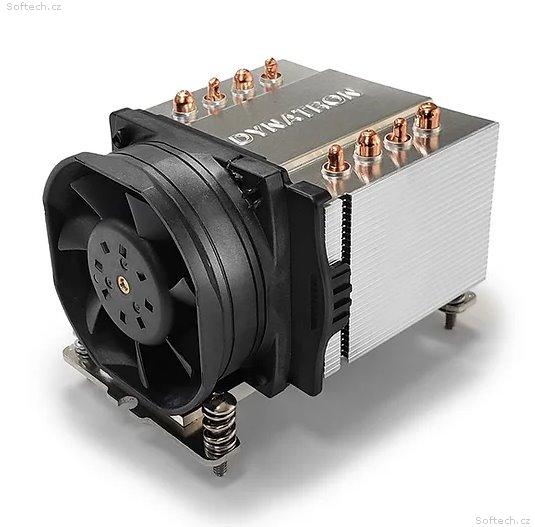

Dynatron A47 - Active Cooler for 2U Server & up for AMD® Socket AM4, AM5

A47
Recommend for AMD® Ryzen Processor Family, Socket AM4 and AM5, 60x60x25 mm PWM Fan, 4 Heat pipes and Aluminum Stacked Fin, Active Cooler for 2U Server and up, Support CPU Power 145 Watts Heat Dissipation.
Additional Information
CPU Support
AMD® Ryzen
CPU Socket
AM4/AM5
Solution
2U Server and Up
Dimensions
107 x 78 x 67 mm
Weight
400 g
Material
4 Heat pipes and Aluminum Stacked Fin
Fan Dimension
60 x 60 x 25 mm
Speed
At Duty Cycle 20%: 2300±200 RPM
At Duty Cycle 50%: 5400±10% RPM
At Duty Cycle 100%: 11000±10% RPM
Bearing
Double-Ball
Rated Voltage
12V
Power
At Duty Cycle 20%: 0.84 W
At Duty Cycle 50%: 2.76 W
At Duty Cycle 100%: 18.0 W
AIr Flow
At Duty Cycle 20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM
At Duty Cycle 100%: 58.31 CFM
Noise Level
At Duty Cycle 20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA
At Duty Cycle 100%: 59.8 dBA
Air Pressure
At Duty Cycle 0~20%: 1.48 mm-H2O
At Duty Cycle 50%: 7.54 mm-H2O
At Duty Cycle 100%: 28.8 mm-H2O
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
*All product specifications and product images are subject to change without notice.
