Popis produktu:
Product SKUs

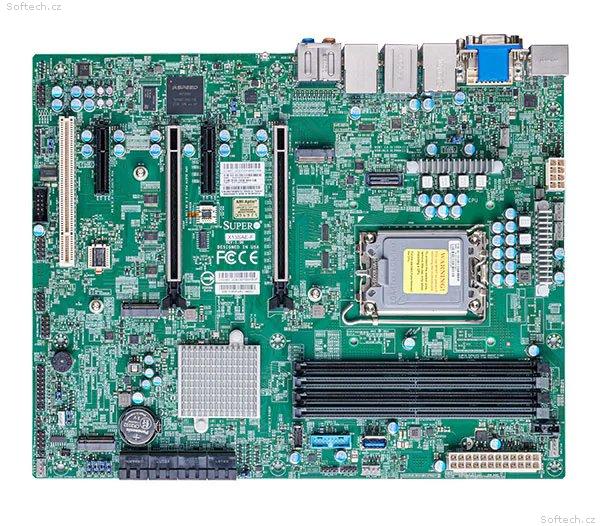

MBD-X13SAE
Physical Stats
Form Factor
ATX
Dimension
12" x 9.6" (30.48cm x 24.38cm)
Processor
CPU
12th/13th Gen Intel® Core™ i3/i5/i7/i9 Processors
Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 150W TDP
Core
Up to 24 (8+16) cores
System Memory
Memory Capacity
4 DIMM slots
Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz
Memory Type
4400/4000/3600 MT/s 192GB
DIMM Sizes
8GB, 16GB, 24GB, 32GB, 48GB
UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB
Memory Voltage
1.1V
On-Board Devices
Chipset
Intel® W680
SATA
Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Audio
ALC 888S HD Audio
Network Controllers
Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet i225V
Input / Output
LAN
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 2.5 Gigabit Ethernet LAN port
USB
4 USB 2.0 port(s) (2 rear; 2 via header)
2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
3 USB 3.2 Gen2x1 port(s) (3 rear type A)
3 USB 3.2 Gen1x1 port(s) (2 via header; 1 Vertical Type A)
Video Output
1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
Serial Port
1 COM Port(s) (1 header)
TPM
1 TPM Header
Expansion Slots
PCIe
2 PCIe 5.0 x16 slots (16/NA or 8/8),
2 PCIe 3.0 x4
M.2
M.2 Interface: 3 PCIe 4.0 x4, RAID 0, 1, 5
Form Factor: 2280
Key: M-Key
Note
1 5V PCI 32bit
System BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or later
Management
System Management Software
SuperDoctor 5
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
LED
Power LED
Catastrophic Error LED
FAN
5x 4-pin fan headers (up to 5 fans)
Fan speed control
Overheat LED indication
Other Features
CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-20°C - 60°C (-4°F - 140°F)
