Popis produktu:
Product SKUs

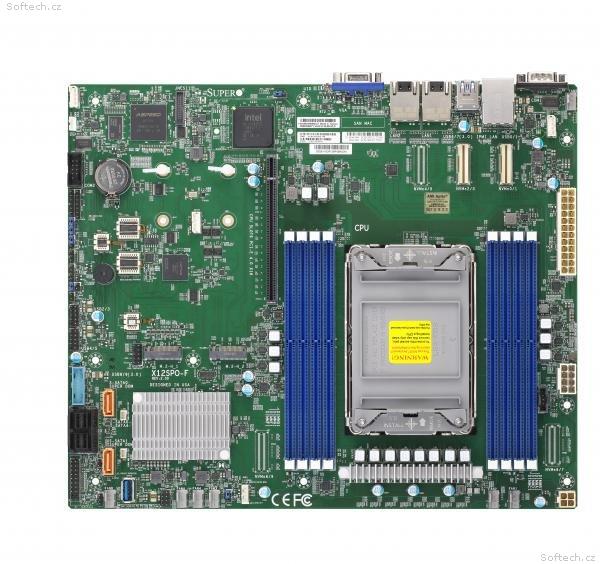

MBD-X12SPO-F
Physical Stats
Form Factor
ATX
Dimension
12" x 10" (30.48cm x 25.4cm)
Processor
CPU
3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
Up to 40 cores
System Memory
Memory Capacity
8 DIMM slots
Up to 2TB Intel® Optane™ Persistent Memory 200 Series
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel® C621A
SATA
Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
1 ASPEED AST2600 BMC port(s)
Network Controllers
Dual LAN with Intel® i350 Gigabit Ethernet Controller
Input / Output
SATA
10 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 port(s) (4 via header; 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
DOM
DOM(Disk on Module) power connector support
TPM
1 TPM Header
Expansion Slots
PCIe
1 PCIe 4.0 x16
M.2
M.2 Interface: 2 SATA/PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.2
SMBIOS 3.0 or later
UEFI 2.7
Management
Software
Supermicro Power Manager (SPM),IPMI Utilities
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection
PC Health Monitoring
Voltage
VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status
LED
UID/Remote UID
Suspend static indicator LED
CPU / System Overheat LED
Temperature
CPU thermal trip support
PECI
FAN
7x 4-pin fan headers (up to 7 fans)
System level control
PWM fan speed control
Fan speed control
Overheat LED indication
Other Features
WOL, UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, RoT
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)
