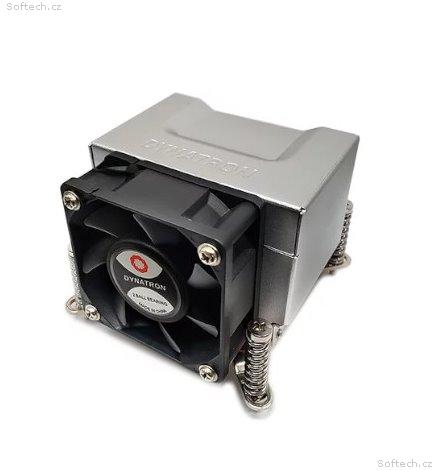

Dynatron Q5 - Active 2U Cooler Intel 1700 -RoHS

LGA 1700
Recommend for Intel® Alder Lake S Processor
Copper base & aluminum fins with heat pipe embedded
Up to TDP 125W
SPECIFICATIONS:

Application

CPU Socket
LGA 1700
CPU
Recommend for Intel® Alder Lake S Processor
Solution
Active Cooler for 2U Server & up

Technical Data

Overall dimension
90.7 x 85.0 x 65.1 mm
Weight
515.2g

Heat Sink


Material
Copper Base & Aluminum Fins with Heat Pipe embedded

Fan

Fan Dimension
60 x 60 x 25 mm
Speed
At Duty Cycle 0~20%: 1600 ± 200 RPM
At Duty Cycle 50%: 4000 ± 10% RPM
At Duty Cycle 100%: 8000 Min RPM
Bearing
2 Ball Bearing
Rated Voltage
12 V
Power
At Duty Cycle 0~20%: 1.20W
At Duty Cycle 50%: 2.28W
At Duty Cycle 100%: 7.2W
Air Flow
At Duty Cycle 0~20%: 9.28 CFM
At Duty Cycle 50%: 23.21 CFM
At Duty Cycle 100%: 46.41 CFM
Noise Level
At Duty Cycle 0~20%: 18 dBA
At Duty Cycle 50%: 37.89 dBA
At Duty Cycle 100%: 52.94 dBA
Static Pressure
At Duty Cycle 0~20%: 0.76 mm-H2O
At Duty Cycle 50%: 4.76 mm-H2O
At Duty Cycle 100%: 19.04 mm-H2O
Lead Wire Pin Out
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Tachometer/Signal output)
Pin4-Blue (PWM)
Thermal grease
Pre-printed
