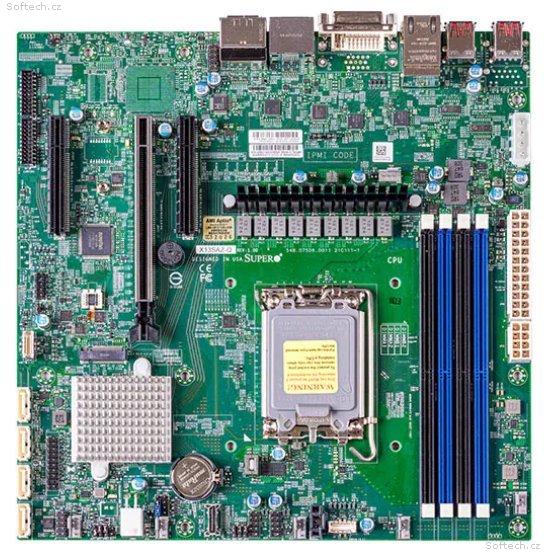

Key Features
12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
Intel® Q670E
Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
1 PCIe 5.0 x16 slot,
2 PCIe 4.0 x4 slots,
1 PCIe 4.0 x4 OCulink port
M.2 Interface:1 PCIe 4.0 x4
M.2 Form Factor:2280/22110
M.2 Key:M-Key
Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
Intel® Q670E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 Independent Displays (2 DP++ ports, 1 HDMI 2.0b port, 1 DVI - D port)
Supports 12V DC power input
Onboard TPM2.0
Product SKUs
MBD-X13SAZ-Q
X13SAZ-Q
Physical Stats
Form Factor
Micro-ATX
Dimension
9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Single Socket LGA-1700 supported
Core
Up to 16 cores
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MHz
*Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
Memory Type
4400/4000/3600MHz
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.1V
On-Board Devices
Chipset
Intel Q670E
SATA
Intel Q670E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
1x ALC 888S HD Audio port(s)ALC 888S HD Audio
Network Controllers
Dual LAN with Intel® Ethernet i225LM
Input / Output
SATA
4 SATA3 (6Gbps) port(s)
USB
2 USB 2 port(s) (2 via header)
6 USB 3.1 Gen2 port(s) (2 via header; 4 rear type A)
2 USB 3.1 Gen1 port(s) (2 via header)
Video Output
1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s)
Serial Port
4 COM Port(s) (2 header RS232/422/485; 2 header RS232)
TPM
TPM Header & Chip both
Standard Parts (Bulk Package)
Part Number
Qty
Description
I/O Cables
2
57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00177-0N
1
Standard I/O Shield for X13SAZ with EMI Gasket
Standard Parts (Retail Package)
Part Number
Qty
Description
I/O Cables
4
57.5CM SATA FLAT S-S PBF
I/O Shield
MCP-260-00177-0N
1
Standard I/O Shield for X13SAZ with EMI Gasket
QRG
MNL-2477-QRG
1
Motherboard Quick Reference Guide
Optional Parts
Part Number
Qty
Description
1U I/O Shield
MCP-260-00178-0N
-
1U I/O Shield For SC515/813/815
4U CPU Heat Sink for Socket H(optional, not included)
-
CPU Active Heatsink for 4U chassis
COM Port Cable
-
40CM Dual Serial Port Cable with bracket
I/O Shield
MCP-260-00177-0N
-
Standard I/O Shield for X13SAZ with EMI Gasket
Passive heatsink
SNK-P0086
-
CPU Passive Heatsink for 1U chassis
USB Cable
-
Dual 55cm USB 3.2 Type A cable
Expansion Slots
PCI-E
1 PCIe 5.0 x16,
2 PCIe 4.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.0 or later
PCI FW 3.0
UEFI 2.7
RTC (Real Time Clock) Wakeup
Management
Software
SuperDoctor® 5, AMT, vPro
System Management Software
Wake-on-LAN, Watchdog
Power Configurations
ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
LED
Power LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Other Features
RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
FAN
5x 4-pin fan headers (up to 5 fans)
Operating Environment
Operating Temperature Range
0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
