Popis produktu:
Product SKUs

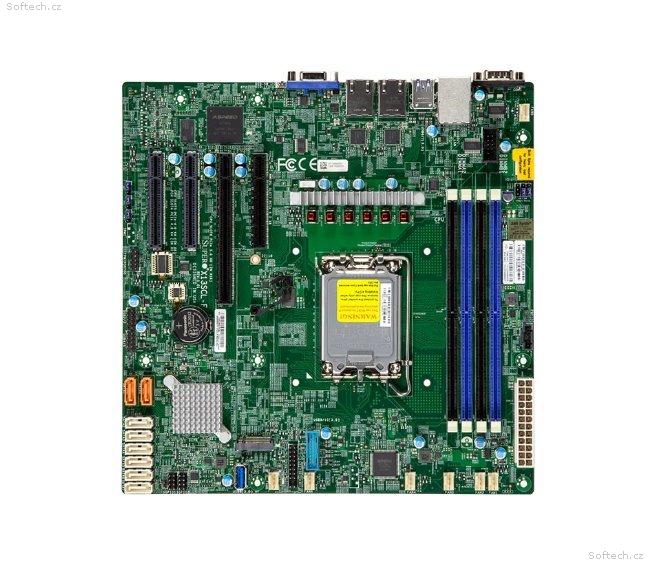

MBD-X13SCL-F
Physical Stats
Form Factor
microATX
Dimension
Processor
CPU
Intel® Xeon® E-2400/Pentium®* Processor
Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
*Pentium® G7400 and G7400T
Core
Up to 8 cores
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MHz
Memory Type
4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel® C262
SATA
Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
1 Aspeed AST2600 BMC port(s)
Network Controllers
Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
8 SATA3 (6Gbps) port(s)
LAN
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 2.0 port(s) (4 via header; 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
TPM
1 TPM Header
Expansion Slots
PCIe
2 PCIe 4.0 x4 (in x8 slot),
1 PCIe 5.0 x8,
1 PCIe 5.0 x8 (in x16 slot)
M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3
Management
Software
IPMI 2.0
Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status, +3.3V standby
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
PECI
FAN
7x 4-pin fan headers (up to 7 fans)
Fan speed control
Overheat LED indication
7 fans with tachometer status monitoring
Other Features
WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management
Operating Environment
Operating Temperature Range
0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
