Popis produktu:

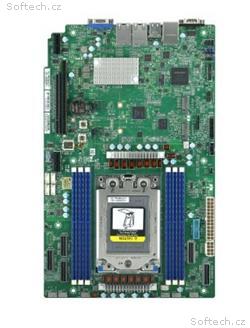

Product SKUs
MBD-H13SVW-NT
Physical Stats
Form Factor
Proprietary WIO
Dimension
8.15" x 13.05" (20.7cm x 33.15cm)
Processor
CPU
AMD EPYC™ 8004 series Processors
Single Socket SP6 supported, CPU TDP supports Up to 225W TDP
Core
Up to 64 cores, 128 threads
System Memory
Memory Capacity
6 DIMM slots
Up to 576GB ECC Registered RDIMM, DDR5-4800MHz
Memory Type
4800 MT/s ECC DDR5 RDIMM
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
System on Chip
Network Controllers
Dual LAN with Broadcom BCM57416 10GBase-T
Single LAN with Realtek RTL8211F PHY
Input / Output
USB
6 USB 3.0 port(s) (4 USB; 2 via header)
Video Output
1 VGA port(s)
TPM
1 TPM Header
Others
3 MCIO (PCIe 5.0 x8) Port(s)
2 MCIO (PCIe 5.0 x8/SATA3) Port(s)
Expansion Slots
PCIe
1 PCIe 5.0 x16 Right Riser Slot,
1 PCIe 5.0 x32 Left Riser Slot
M.2
M.2 Interface: 2 PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Plug and Play (PnP)
USB Keyboard support
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED
UID/Remote UID
BMC/IPMI Heartbeat LED
Other Features
RoT
FAN
6x 4-pin fan headers (up to 6 fans)
Operating Environment
Operating Temperature Range
10°C - 35°C (°F - °F)
Non-Operating Temperature Range
-40°C - 70°C (°F - °F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non Operating Relative Humidity Range
5% - 95% (non-condensing)
Optional Parts
Part Number
TPM security module (optional, not included)
AOM-TPM-9670V
Motherboard / Chassis
CSE-815BTS-R000WNP
1U Chassis
Backplane
BPN-NVME5-LA15-S4
1U 4-Slot 3.5
Cable
CBL-CDAT-0728
4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
Cable
CBL-MCIO-1270OT4S2-85
MCIO X8/STR to 8 SATA+2 SB, 70cm, 85Ohm, RoHS,RoHS
Cable
CBL-0335L
FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
Cable
CBL-PWCD-0160-IS
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan
FAN-0163L4
40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Front Panel
MCP-280-00033-0N
Universal Thermal sensor kit with 80cm I2C cable
Front Panel
FPB-FP815U
815 UIO front control board (U)
Power Supply
PWS-861A-1R
1U redundant 800/860W Titanium AC power supply 54.5x40x322mm
Power Supply
MCP-250-81502-0N
SC815 Redundant Power Distributor Cover
Riser Card
RSC-W-66G5
1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
Riser Card
RSC-WR-6G5H
1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS
Software
SFT-OOB-LIC
License key for enabling OOB BIOS management
Heatsink / Retention
SNK-P0062P-1
1U Passive CPU Heat Sink for AMD Socket SP6 Processors
Power Distributor
PDB-PT116-SL8824
Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
Fan Holder
CSE-PT0135
FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
Fan Holder
MCP-340-00035-0B
Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Peripheral Drive
CSE-PT93L-B
Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
Drive Tray(s)
MCP-220-00075-0B
Black gen 5.5 hot-swap 3.5" HDD tray
Rear Window
MCP-240-00202-0N
1U WIO rear window to support top-load riser bracket for SC815B,SC116B
Rail Set
MCP-290-00016-0N
1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
Rail Set
MCP-290-00054-0N
Rail set, quick/quick, optional for 1U 17.2
Air Shroud
MCP-310-81506-0B
Air block for 1U WIO SC815B with X13SEW
2.5" to 3.5" Toolless Converter Tray
MCP-220-00118-0B•
Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
GPU Kit
CBL-PWEX-1240
GPU power cable. PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,45CM
GPU Kit
CBL-0424L•
GPU power cable. Dual 6+2pin GPU power extension from PDB regular 8pin, 40cm
GPU Kit
MCP-310-81504-0B
1U air shroud for SC815/SC116 for Tesla V100 and Tesla T4
NVMe Cable (Drive Bay 0-1)
CBL-MCIO-1235M5Y•
MCIO (x8 to 2 x4) STR,25CM,85OHM
NVMe Cable (Drive Bay 2-3)
CBL-MCIO-1225M5Y•
MCIO (x8 to 2 x4) STR,25CM,85OHM
