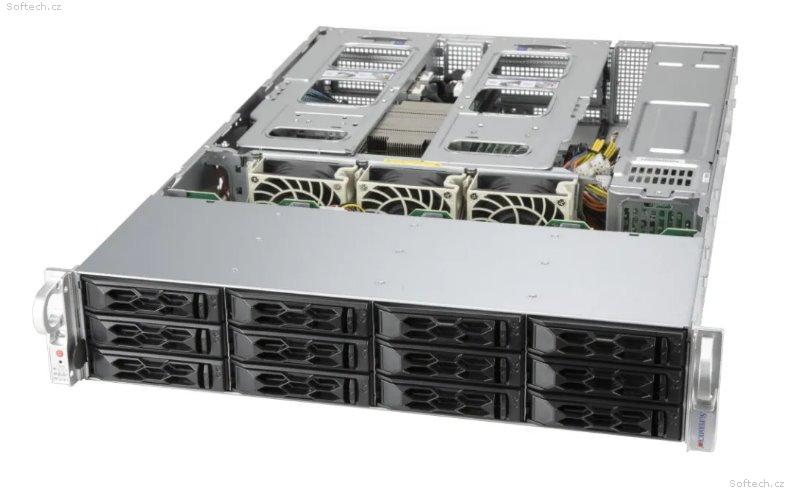

SUPERMICRO AS-2014CS-TR-EU, Milan 7443 CPU, 4x 64GB DDR4-3200, AOC-S3916L-H16IR-32DD-O, 5x HDD, 3.5",SAS, 20TB, 7.2K, F

Product SKUs
A+ ServerAS -2014CS-TRStandard version with PWS-920P-1R2 (Platinum Level)
A+ ServerAS -2014CS-TR-EUEuropean version with PWS-1K23A-1R (Titanium Level)
Motherboard
Super H12SSW-AN6
Processor
CPU
Single Socket SP3
AMD EPYC™ 7002/7003 Series Processors
Note
Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
Up to 2 double-width or 4 single-width GPUs
Supported GPU
NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A16, A2, A100, A10
AMD PCIe: Instinct MI210, Instinct MI100
View GPU Options
System Memory
Memory
Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
View Memory Options
Memory Voltage
1.2V
On-Board Devices
SATA
SATA (6Gbps)
Chipset
System on Chip
Network Connectivity
Ethernet
View AIOM Options
View AOC Options
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 RJ45 1 GbE Dedicated BMC LAN port
USB
2 USB 3.0 ports(rear)
Video
1 VGA port
Serial
1 COM port(Rear)
System BIOS
BIOS Type
AMI 256MB SPI Flash EEPROM
Management
Software
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
KVM with dedicated LAN
IPMI 2.0
Watch Dog
OOB Management Package (SFT-OOB-LIC )
Power configurations
ACPI/APM Power Management
Security
Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory
4+1 Phase-switching voltage regulator
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
FAN
Pulse Width Modulated (PWM) fan connectors
3 fans with tachometer status monitoring, Status monitoring for speed control
Chassis
Form Factor
2U Rackmount
Model
CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
3.5" (89 mm)
Width
17.2" (437 mm)
Depth
25.5" (648 mm)
Package
11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
Gross Weight: 59 lbs (26.76 kg)
Net Weight: 33 lbs (15 kg)
Available Color
Black front & sliver body
Front Panel
LED
Drive activity
Network activity
Power status
Universal Information (UID)
Buttons
Power On/Off
Universal Information (UID)
Expansion Slots
PCI-Express (PCIe) Configuration
Default
4 PCIe 4.0 x16 FH/10.5"L slots
2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
View AOC Options
M.2
2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)
Drive Bays / Storage
Drive Bays Configuration
Default: Total 12 bays
12 front hot-swap 3.5" SATA drive bays
Option A: Total 12 bays
8 front hot-swap 3.5" SATA drive bays
4 front hot-swap 3.5"/2.5" NVMe* drive bays
Option B: Total 12 bays
12 front hot-swap 3.5" SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
View NVMe Options
View Drive Options
M.2
View M.2 Options
System Cooling
Fans
3 middle cooling 80x80x38mm Fan(s)
Power Supply
2x 920W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
Input
920W: 100-127Vac
920W: 100-127Vac / 50-60Hz
920W: 200-240Vac
920W: 200-240Vdc / 50-60Hz
920W: 200-240Vac / 50-60Hz
+12V
Max: 75A / Min: 0A (100Vac-127Vac)
Max: 75A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
Operating Environment
ROHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
