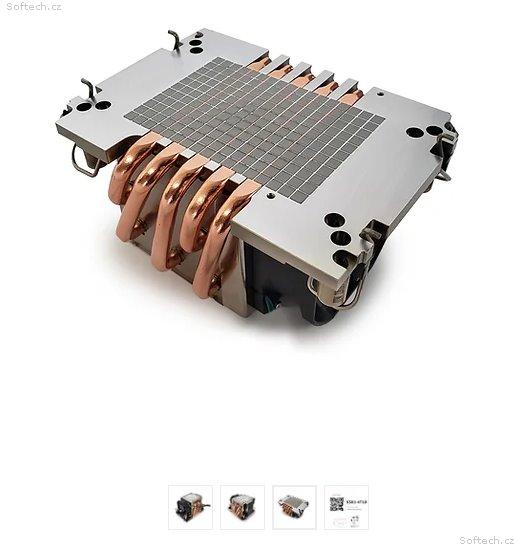

Dynatron S5R1-4710 - 2U Active Cooler for Intel 4677, up to 550W

CPU Support
Intel® Granite Rapids SP
CPU Socket
FCLGA 4710
Screw Type
#8-32
Installation Torque
8 in-lb
Solution
2U Server and Up
Dimensions
118 x 82 x 67 mm
Weight
490 ±10 g
Material
5 Heatpipes with Aluminum Fin Base and Aluminum Fin Stack
Fan Dimension
60 x 60 x 25 mm
Speed
At Duty Cycle 0~20%: 2300± 200 RPM
At Duty Cycle 50%: 5400± 10% RPM
At Duty Cycle 100%: 11000±10% RPM
Rated Voltage
12V
Bearing
Double Ball
Power
At Duty Cycle 0~20%: 0.84 W
At Duty Cycle 50%: 2.76 W
At Duty Cycle 100%: 18.0 W
Air Flow
At Duty Cycle 0~20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM
At Duty Cycle 100%: 58.31 CFM
Noise Level
At Duty Cycle 0~20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA
At Duty Cycle 100%: 59.8 dBA
Air Pressure
At Duty Cycle 0~20%: 1.48 mm-H2O
At Duty Cycle 50%: 7.54 mm-H2O
At Duty Cycle 100%: 28.8 mm-H2O
Lead Wire Pin Out
Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)
Thermal Grease
Shin-Etsu X23-8079-2
Life – Continuous operating
under normal temperature
(40 °C or 104 °F)
70,000 Hours
