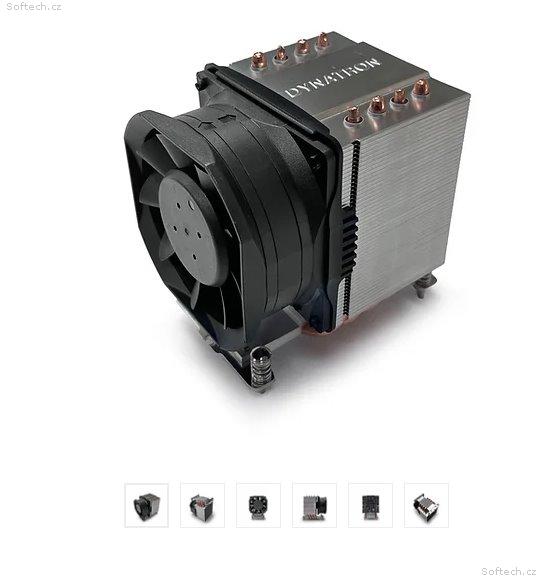

Dynatron A56 - Active Cooler for 3U Server & up for AMD® Socket AM4, AM5

CPU Support
AMD® Ryzen Processor
CPU Socket
AM4/AM5
Screw Type
#6-32
Installation Torque
6-10 in-lb
Solution
3U Server and up
Dimensions
107.5 x 78 x 110mm
Weight
600g
Material
Aluminum Stacked Fin with Heat Pipes directly contact CPU
Fan Dimension
80 x 80 x 38 mm
Speed
At Duty Cycle 0~20%: 2400 ± 10% RPM
At Duty Cycle 50%: 4800 ± 10% RPM
At Duty Cycle 100%: 8000 RPM Min
Bearing
Double Ball
Rated Voltage
12V
Power
At Duty Cycle 0~20%: 1.2 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 W
Air Flow
At Duty Cycle 0~20%: 35.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFM
Noise Level
At Duty Cycle 0~20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.40 dBA
Life – Continuous operating
under normal temperature
(40 °C or 104 °F)
70,000 Hours
