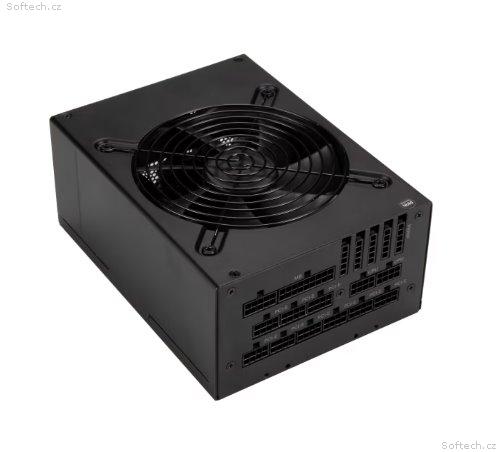

SUPERMICRO 2000W PS2 Multi-output Power Supply (PWS-2K01-PQ)

More Information
Total Power Output
2000W
Type
Module
Type of Power Supply
Power Supply
Form Factor
PS2
Dimension (W x H x L)
150 x 86 x 200 mm
+5V
25A
+12V
100A (1200W) ; 125A (1500W) ; 166.6A (2000W)
+3.3V
25A
5V Standby
4A
+12V Standby
0.5A
Input Voltage Range
1200W (100-115Vac) // 1500W (115-200Vac) // 2000W (200-264Vac)
Input Frequency Range
50-60Hz
Input Current Range
15-12A (100-240Vac)
Output Type
24Pin ATX Cable Output
8Pin / 4Pin (12V) Connector
-
PFC
-
Voltage / Current
-
Energy Efficiency
92%+ Efficiency
80 Plus Certification
80 Plus Platinum
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
