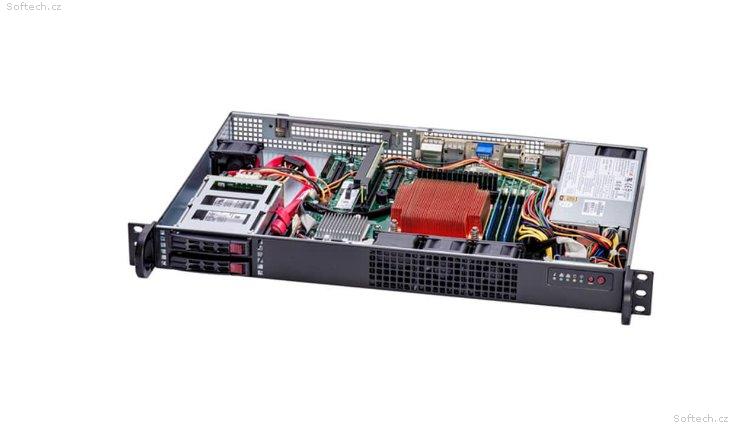

SUPERMICRO SYS-111AD-HN2, RPL-S i9-14900 CPU, 2x 16GB DDR5-4800, SSD 2.5" SATA 960GB, SSD M.2 NVMe PCIe3 256GB, Windows

Product SKUs
SuperServerSYS-111AD-HN2
Motherboard
Super X13SAZ-F
Processor
CPU
Single LGA-1700
12th/13th Gen Core i9/i7/i5/i3 Processor
Note
Supports up to 80W TDP CPUs (Air Cooled)
System Memory
Memory
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM
View Memory Options
Memory Voltage
1.1V
On-Board Devices
SATA
SATA (6Gbps)
Chipset
Intel® R680E
Network Connectivity
2 RJ45 2.5GbE with Intel® I225-LM
View AOC Options
Input / Output
LAN
2 RJ45 2.5 GbE LAN ports
USB
4 ports
Video
1 VGA port
1 HDMI 2.0b port
1 DVI-D port
2 DisplayPort 1.4 ports
Audio
Line Out
Mic in
Management
Software
SuperCloud Composer®
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Security
Hardware
Trusted Platform Module (TPM) 2.0
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
System Lockdown
PC Health Monitoring
Temperature
SuperDoctor® 5
System resource alert via SuperDoctor®5
Platform Environment Control Interface (PECI) 3.0 support
Chassis
Form Factor
1U Rackmount
Model
CSE-510FT-203B
Dimensions and Weight
Height
1.7" (43 mm)
Width
17.2" (437 mm)
Depth
11.3" (287 mm)
Package
6.1" (H) x 25.4" (W) x 19.8" (D)
Weight
Gross Weight: 14.1 lbs (6.4 kg)
Net Weight: 10 lbs (4.54 kg)
Available Color
Black
Expansion Slots
PCI-Express (PCIe) Configuration
Default
1 PCIe 5.0 x16 HHHL slot
View AOC Options
Drive Bays / Storage
Drive Bays Configuration
Default: Total 2 bays
2 front hot-swap 2.5" SATA drive bays
M.2
1 M.2 NVMe slot (M-key 2280/22110)
View M.2 Options
System Cooling
Fans
4x 4-PIN PWM 40x28mm Fan(s)
Air Shroud
1 Air Shroud
Power Supply
1x 200W Gold Level (91%) power supply
Dimension (WxHxL)
76 x 40.3 x 192 mm
Input
200W: 100-240Vac
200W: 100-240Vac / 50-60Hz
+12V
Max: 16A / Min: 0.1A (100Vac-240Vac)
Max: 16A / Min: 0A (100Vac-240Vac)
5V SB
Max: 2A / Min: 0A
Output Type
20pin ATX
Certification
Gold Level
[Test Report]
Operating Environment
Environmental Spec.
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
