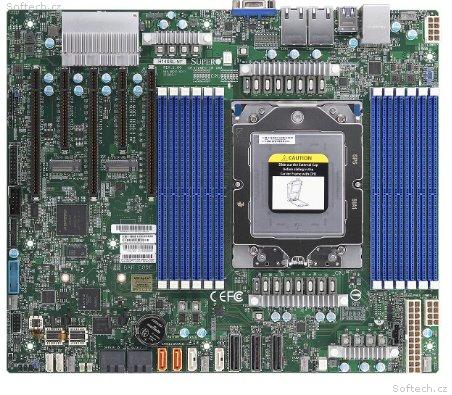

SUPERMICRO MB 1xSP5 (Epyc 9005, 4), 12x DDR5, 8x SATA+6x NVMe, 16xSATA+4xNVMe, 2x M.2, PCIe 5.0 (3 x16, 2 x8), 2x10Gb, IPMI

Product SKUs
MBD-H14SSL-NT
Physical Stats
Form Factor
ATX
Dimension
12" x 10.1" (30.48cm x 25.65cm)
Processor
CPU
Single processor(s)
AMD EPYC™ 9005/9004 Series Processors
Core Count
Up to 192C/384T
Note
Supports up to 500W TDP CPUs
System Memory
Memory
Slot Count: 12 DIMM Slots
Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM/3DS RDIMM
DIMM Sizes
RDIMM/3DS RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
System on Chip
Network Controller
Dual LAN with Broadcom BCM57416 10GBase-T
Input / Output
LAN
1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
2 USB 3 port(s) (Header)
4 USB 3 port(s)
Video
1 VGA port(s)
Serial
1 COM port(s) (header)
TPM
1 TPM header
Others
1 MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s)
2 MCIO (PCIe 5.0 x8/SATA3) port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
3 PCIe 5.0 x16 (in x16) slots
2 PCIe 5.0 x8 slots
M2
2 M.2 PCIe 4.0 x4 SATA slots (M-key 2280/22110)
System BIOS
BIOS Type
AMI 64MB SPI Flash EEPROM
BIOS Features
UEFI 2.8
ACPI 6.5
SMBIOS 3.7 or later
Management
Software
SuperCloud Composer®
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Plug-ins for 3rd Party Software
Security
Hardware
Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
+12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,VBAT
LED
BMC/IPMI Heartbeat LED
UID/remote UID LED
Temperature
CPU temperature
CPU thermal trip support
Memory temperature
VRM temperature
FAN
6x 4-pin fan headers (up to 6 fans)
Other Features
RoT
