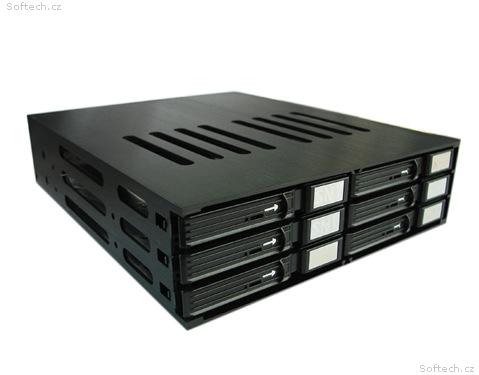

Jou Jye Backplane SATA 6x 2,5"HDD do 5,25" pozice RoHS

SPECIFICATIONS:
Model Name JJ-1060SATA
Interface SATA-I, SATA-II
Compatible with SATA-I & SATA-II
Bays 1 x 5.25" bay for 6 x 2.5" HDD (SSD)
HDD size 2.5" (thickness upto 9.5mm)
HDD connection cableless HDD connection
Pin 7pin signal connectors x 6
Power connector 4pin power connector
Performance SATA-I: upto 1.5Gb/s
SATA-II: upto 3.0Gb/s
*RAID support 0, 1, 10, 5 Functions (*need an optional SATA Raid Controller on the host side (mainboard))
Plug & play Supports plug & play, hot swappable
Material Aluminum body/ metal trays/plastic cover
Colour Black
Ventilation 2 x 4cm fan
LED switch LED "enable" or "disable"
LED indication condictive LED indication for each tray
Power on: solid blue
Access: blue blinking
Extra features Anti-vibration HDD tray
Mechanical lock
Dimensions [mm] 172(L) x 146(W) x 42(H)mm
Weight 0.75KG
