Popis produktu:

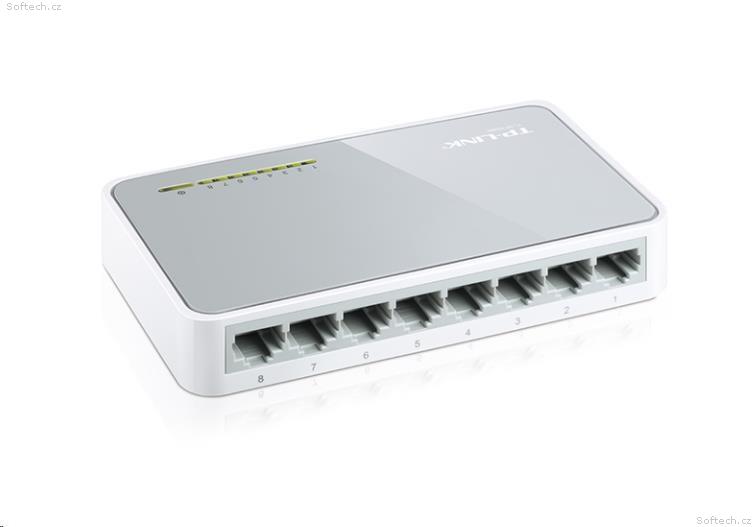

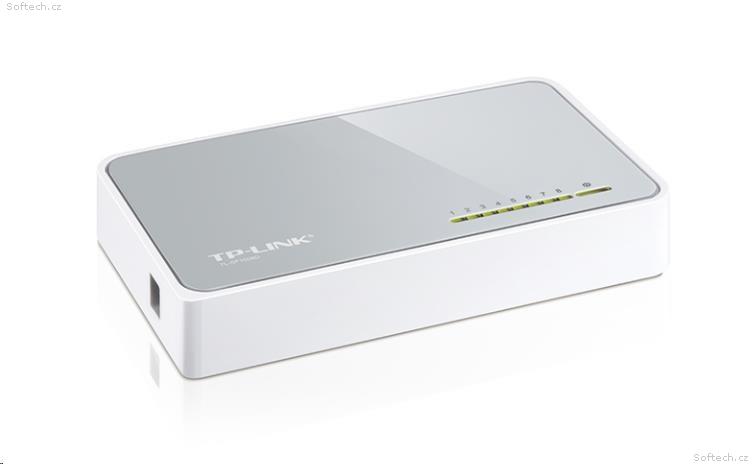

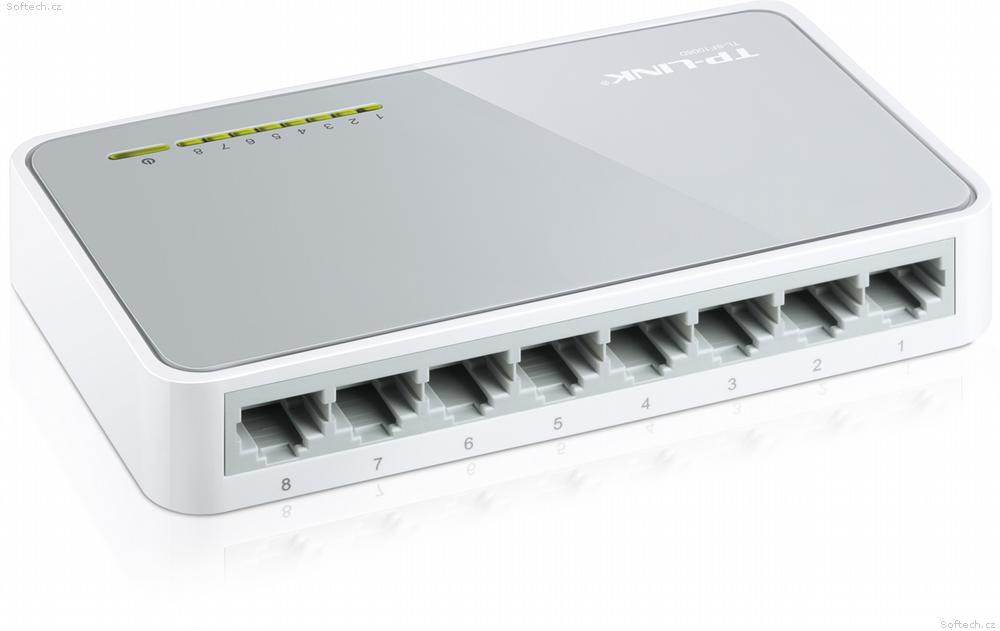

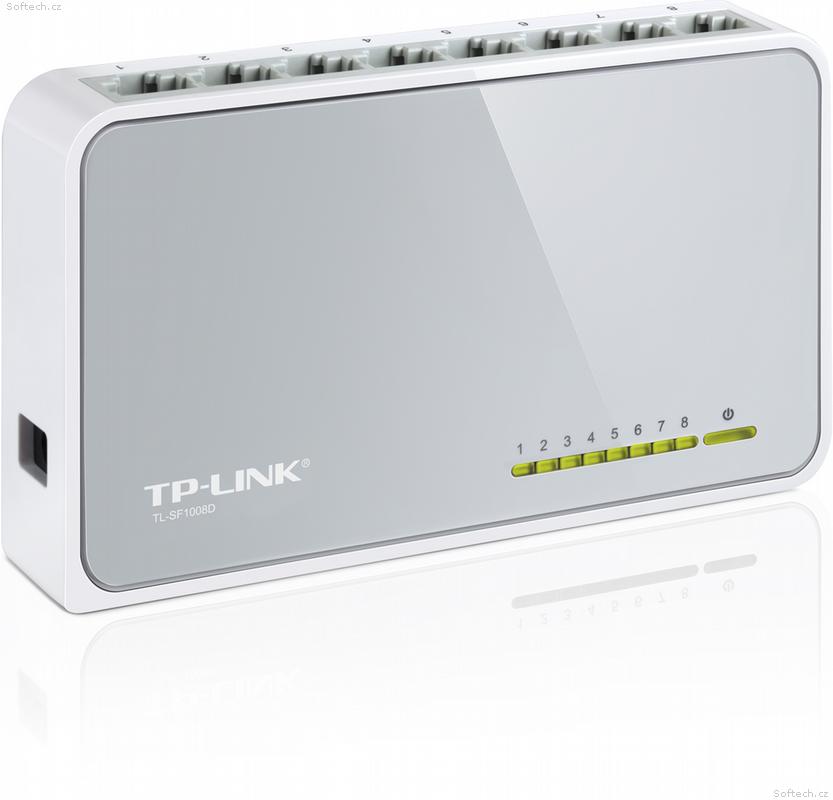

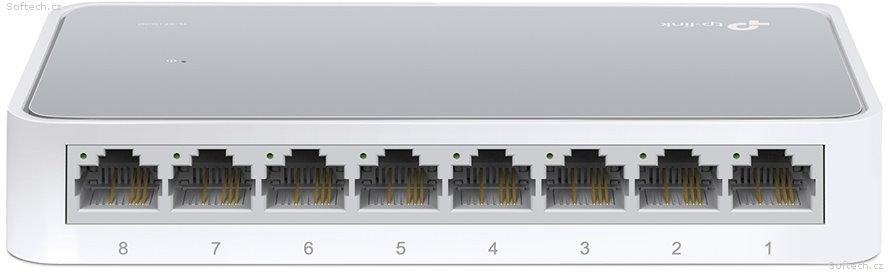

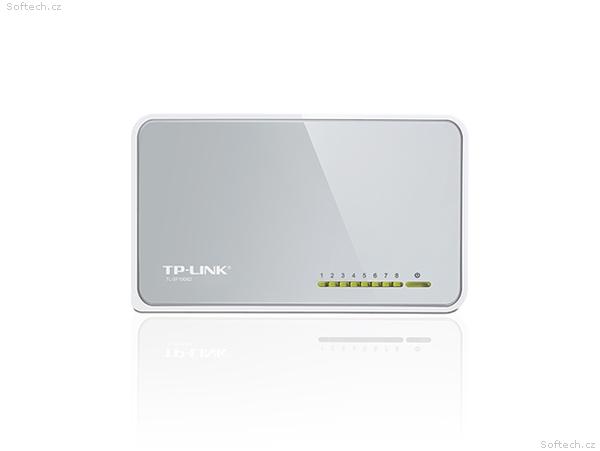

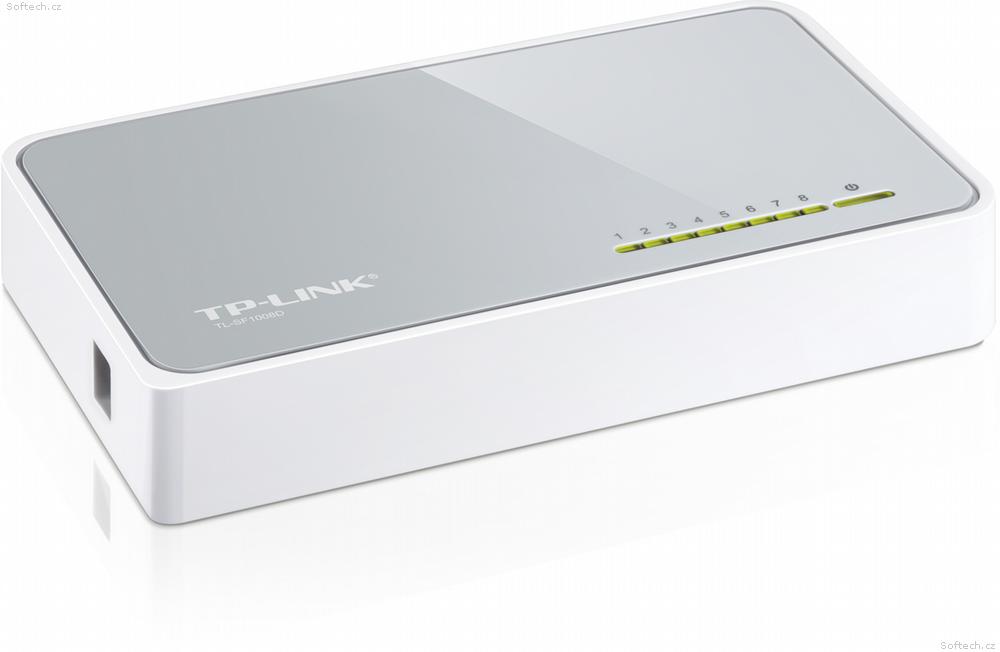

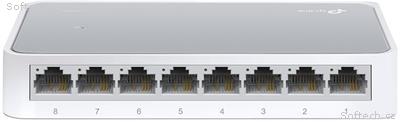

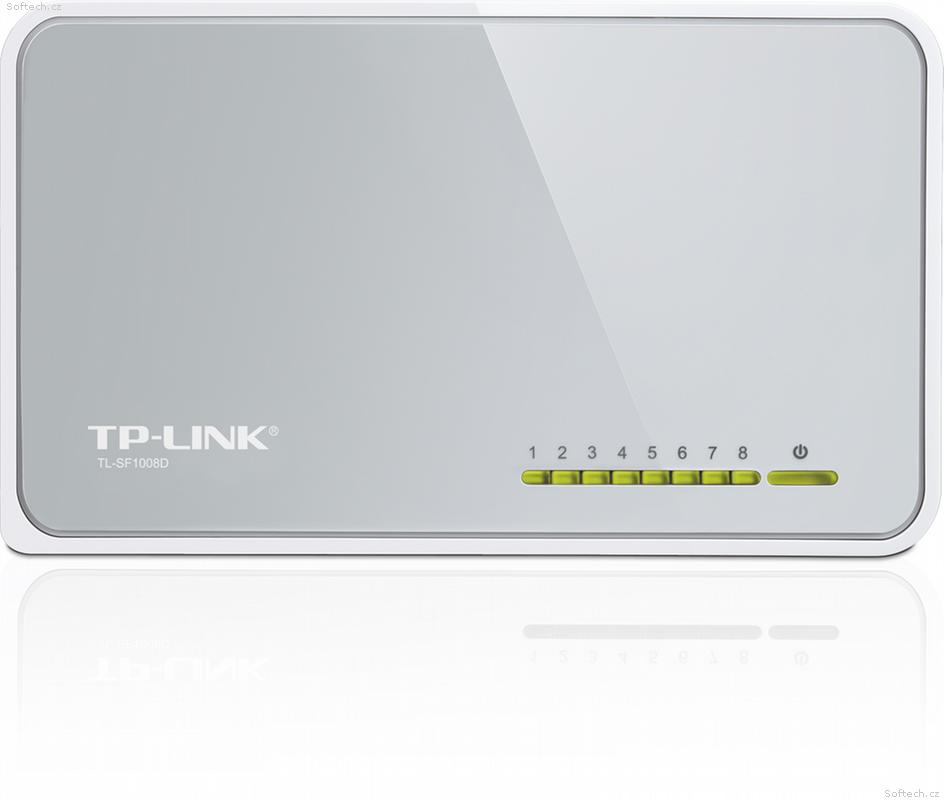

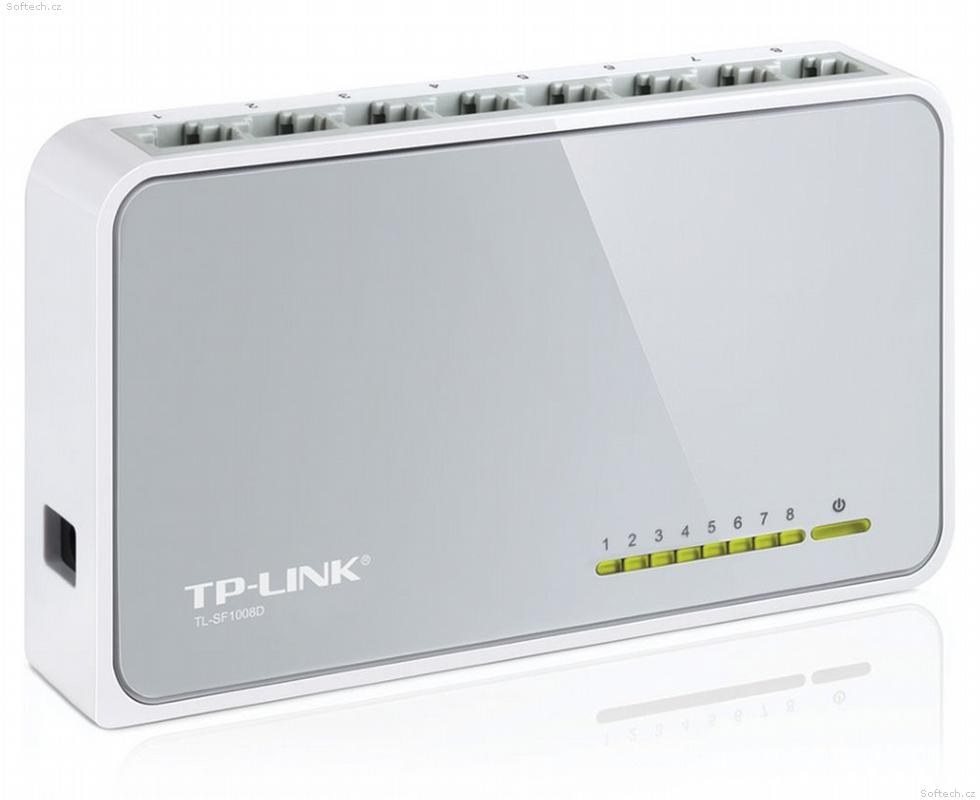

8portový stolní switch 10/100 Mbit/s
TL-SF1008D

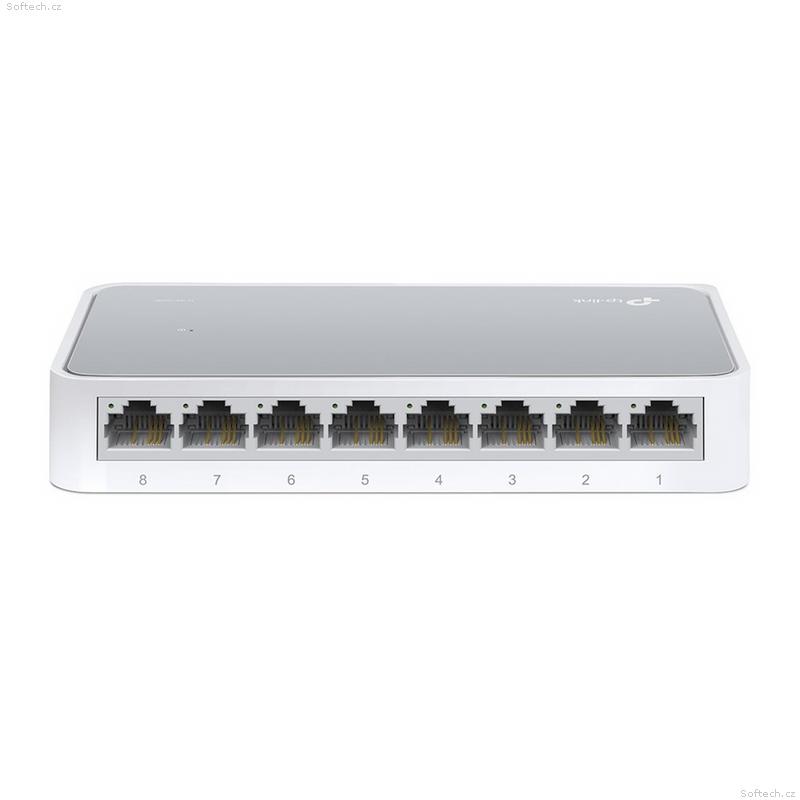

8 portů 10/100 Mbit/s RJ45 s podporou automatického vyjednávání a Auto MDI/MDIX
Ekologická technologie Ethernet přinášející úsporu energie až 70 %
Řízení toku IEEE 802.3x zajišťuje spolehlivý přenos dat
Plastový obal, stolní design
Zapojení typu Plug and Play bez nutnosti konfigurace
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Interface
8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
Power Supply
External Power Adapter(Output: 9.0VDC / 0.6A)
Power Consumption
Maximum: 2.2W (220V/50Hz)
External Power Supply
100-240VAC, 50/60Hz
Buffer Size
2Mb
Data Rates
10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex
LED Indicator
Power, 1, 2, 3, 4, 5, 6, 7, 8
Dimensions ( W x D x H )
5.3*3.1*0.9 in. (134.5*79*22.5mm)
SOFTWARE FEATURES
Transfer Method
Store and Forward
Advanced Functions
Green Technology, saving power up to 60%
802.3X Flow Control, Back Pressure
OTHERS
Certification
FCC, CE, RoHS
Package Contents
8-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide
System Requirements
Microsoft® Windows®, XP, Vista or Windows 7, Windows 8, Mac® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
