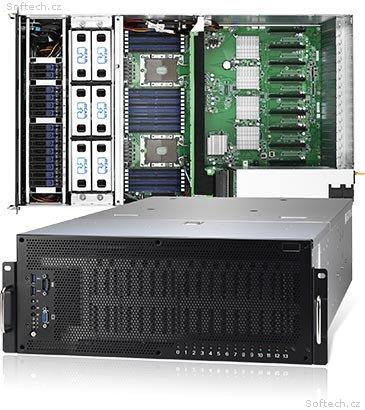

TYAN Thunder HX 4U 8 GPU server 2x 3647, 24x DDR4 ECC R, 14x 2,5 SATA, 3x 3200W (plat.), 2x 10Gb LAN, IPMI

Tyan Thunder HX FT77DB7109 (B7109F77DV14HR-2T-NF) Specifications
System Form Factor 4U Rackmount
Chassis Model FT77D
Dimension (D x W x H) 30.31" x 17.24" x 6.93" (770 x 438 x 176mm)
Motherboard Name S7109GM2NR-2T #
Motherboard Notification # The motherboard not sold separately
Gross Weight 45 kg (99.5 lbs)
Net weight 26 kg (57.5 lbs)
Front Panel Buttons (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED
LEDs (1) HDD / (1) ID / (1) Warning / (3) LAN
I/O Ports (2) USB 3.0 ports
Internal Drive Bay
Q"ty / Type (14) 2.5" Hot-Swap SSD/HDD
HDD Backplane Support SAS 12Gb/s /SATA 6Gb/s /NVMe
Supported HDD Interface (14) SATA 6Gb/s
System Cooling Configuration Redundancy Yes
FAN (5+1) hot-swap 12cm fans
Power Supply Type CRPS
Input Range AC 100-127V/12.9A / AC 200-240V/9.5A
Frequency 47-63 Hz
Output Watts 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input)
Efficiency PFC / 80 plus Platinum
Redundancy 2+1
Processor Q"ty / Socket Type (2) LGA3647 / *Socket-F support
Supported CPU Series Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage Max up to 205W
System Bus Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support
Chipset
PCH Intel C621
Switch IC (4) PLX PEX8747
Memory Supported DIMM Qty (12)+(12) DIMM slots
DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM)
Capacity Up to 1,536GB RDIMM/LRDIMM & 3,072GB RDIMM 3DS/LRDIMM 3DS
*Follow latest Intel DDR4 Memory POR
Memory channel 6 Channels per CPU
Memory voltage 1.2V
Notification DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail.
Expansion Slots PCI-E (1) PCI-E Gen3 x16 slot (FH / FL / SW) / (8) PCI-E Gen3 x16 slots (FH / FL / DW)
Pre-installed TYAN Riser Card
(PCI-E Gen3) (1) M2215-L8-1F # riser card for (1) LAN mezz. slot (left) / (1) M2217-L16-IO # riser card for (1) storage mezz. slot
Others (1) PCI-E Gen3 x8 storage mezz. slot / (1) PCI-E Gen3 x8 LAN mezz. slot
Physical Dimension
Abbreviation FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm)
Notification # The item not sold separately
LAN Q"ty / Port (2) 10GbE ports / (1) GbE dedicated for IPMI
Controller Intel X550-AT2
PHY Realtek RTL8211E
Storage SATA Connector (2) Mini-SAS HD (8 ports)
Controller Intel C621
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA Connector (2) SATA-III / (1) Mini-SAS HD (4 ports)
Controller Intel C621
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
I/O Ports USB (2) USB3.0 ports (@ front)
COM (1) DB-9 COM port (@ front)
VGA (1) D-Sub 15-pin port (@ front)
RJ-45 (2) 10GbE ports, (1) dedicated GbE for IPMI
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management
Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
Operating System OS supported list Please refer to our AVL support lists.
Regulation FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Class A
VCCI Class A
Operating Environment
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C
Note Please refer to the TYAN NVIDIA Compatibility List for the operating temperature while GPGPU deployed
RoHS RoHS 6/6 Compliant Yes
Package Contains Barebone (1) FT77D-B7109 w/NV Tesla-aware FW Barebone
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
