Popis produktu:
Mechanical

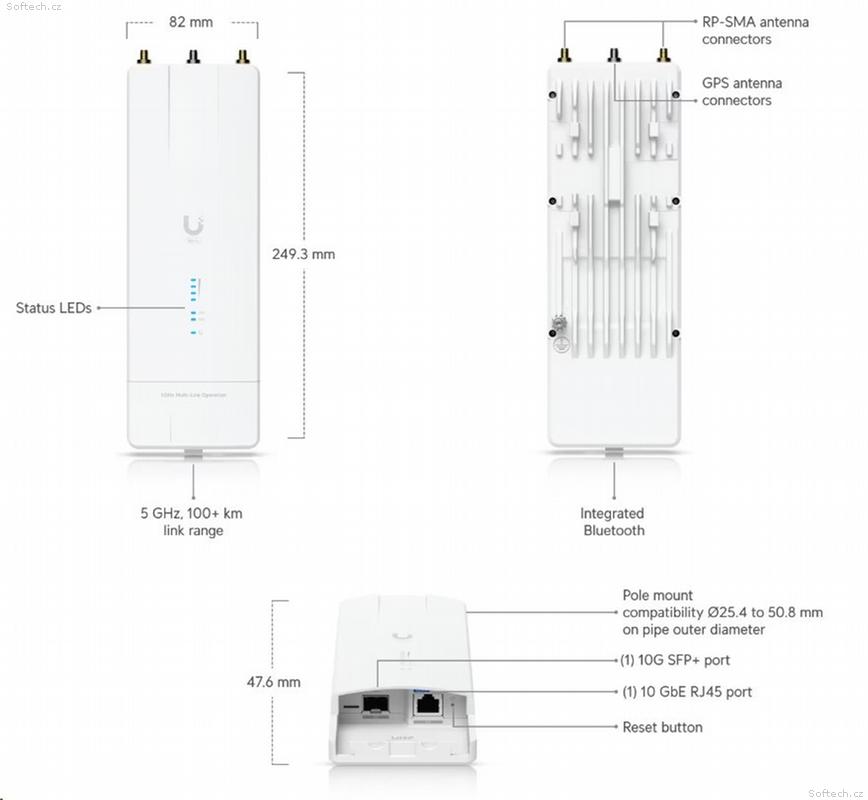

Dimensions
249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9")
Weight
575 g (1.3 lb)
Enclosure material
Aluminum alloy, UV-resistant polycarbonate
Mount material
Strap: stainless metal
Universal bracket:
UV-resistant polycarbonate
Pole mount diameter 25.4 to 50.8 mm (1 to 2") on pipe outer diameter
Weatherproofing
IPX6
Hardware
Processor Quad-core
IPQ5322 at 1.5 GHz
Memory
DDR4 1 GB
Networking interface (1) 10 GbE RJ45 port
(1) 10G SFP+ port
RF connectors
(2) RP-SMA (Waterproof)
(1) GPS (Waterproof)
Max. power consumption 20W
Power method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply
54V DC, 0.56A, 10 GbE PoE adapter (Included)
Supported voltage range 44–54V DC
22–27V DC
Max. TX power*
5 GHz
24 dBm
*Depends on regulatory region.
MIMO
5 GHz
(2) 2 x 2
GPS Yes
Button (1) Factory reset
LEDs (1) Power, (1) Ethernet, (1) GPS, (4) signal
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Operating mode PtP
Services UISP, ping watchdog, NTP client
Tools Alignment, speed test, ping, traceroute, discovery, site survey
Network Bridge mode
Total throughput 5+ Gbps
Max. range* 100 km
*Throughput and range values may vary depending on the environmental conditions.
Encryption WPA3-PSK (AES)
RF
Operating frequency* 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz
*Depends on regulatory region.
Channel bandwidth Radio 1: 20, 40, 80, 160 MHz
Radio 2: 20, 40, 80, 160, 240 MHz
Modulation BPSK (1), QPSK (1), QPSK (3), 16QAM (1), 16QAM (3), 64QAM (?), 64QAM (3), 64QAM (?), 256QAM (3), 256QAM (?), 1024QAM (3), 1024QAM (?), 4096QAM (3), 4096QAM (?)
