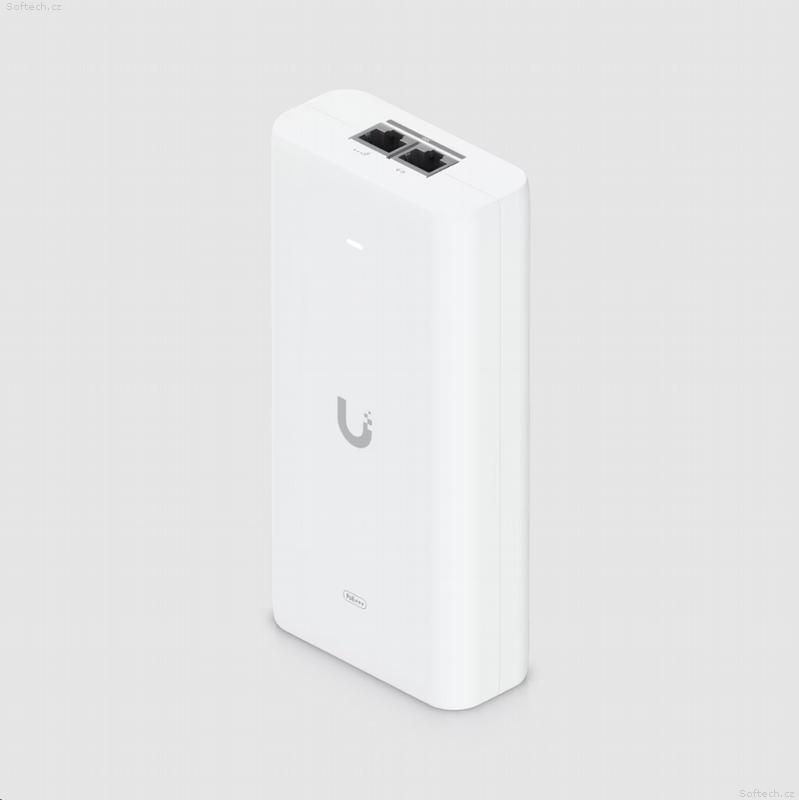

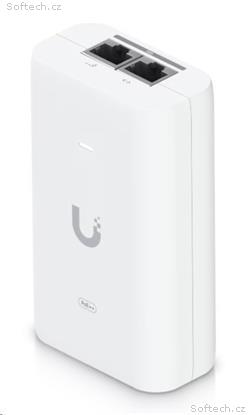

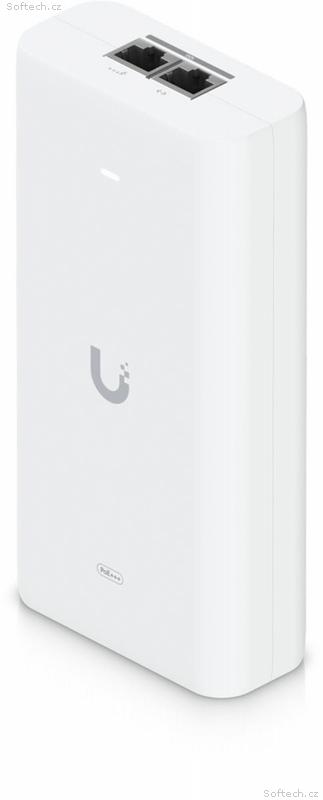

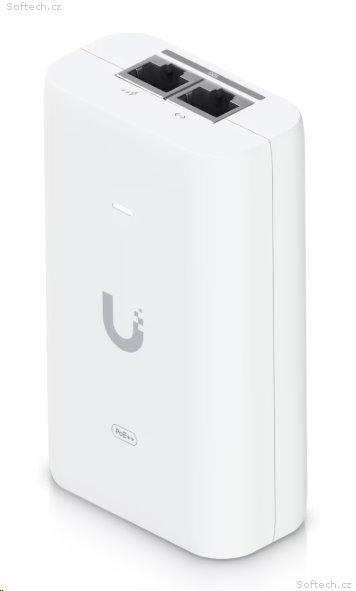

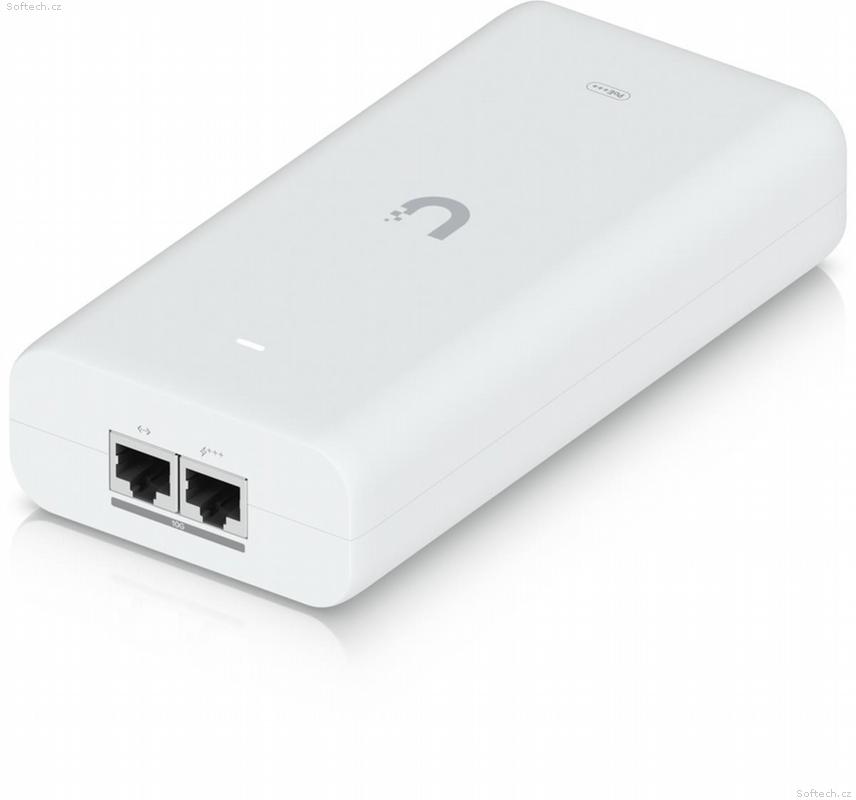

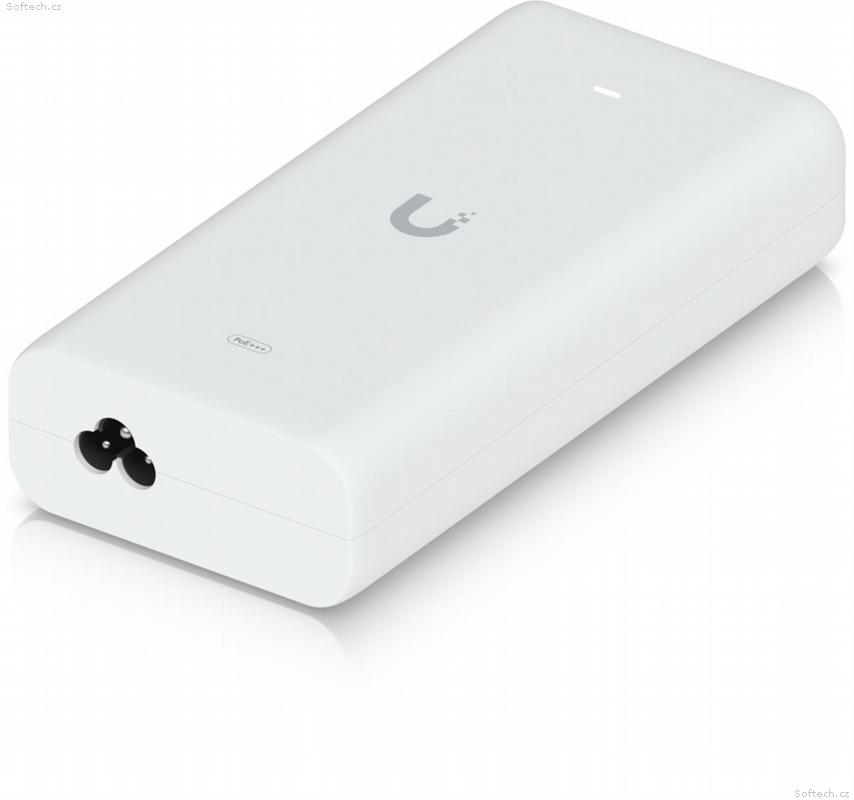

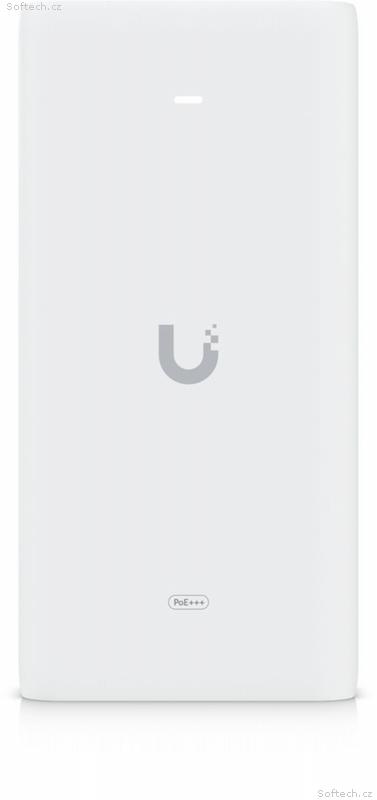

Ubiquiti UniFi 10G PoE+++ adaptér (60 W)

Technical Specification
Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight
210 g (7.4 oz)
Output voltage
54V DC @ 1.12A
LAN activity indicator No
Gigabit LAN port
Yes, up to 10 GbE
Remote reset capability No
Reset button
No

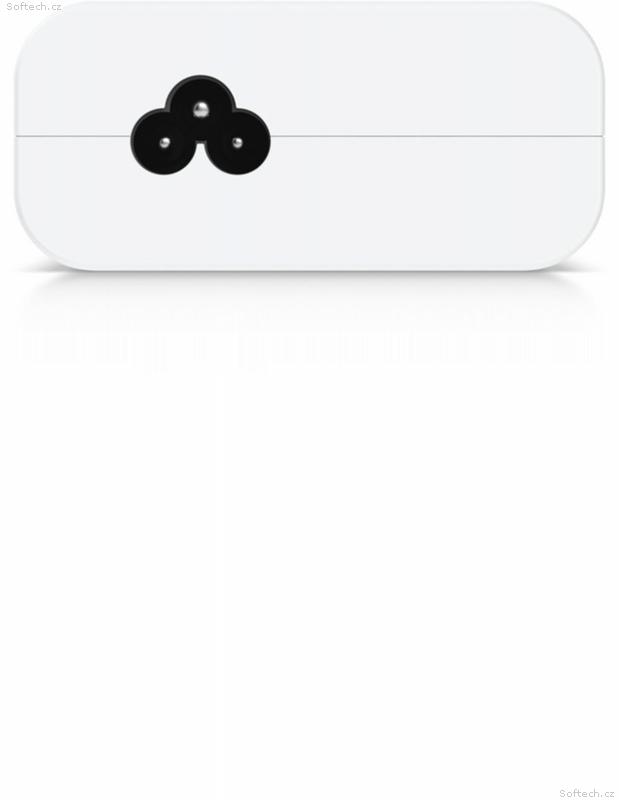

Rated voltage
100—240V AC @ 50/60Hz
Input current
1.5A max.
Inrush current
<150A peak @ 230V AC
Efficiency
>88%
Output ripple
1% max.
Switching frequency 65 kHz
Line regulation
? 2%
Load regulation
? 5%
2-pair powering
No
4-pair powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Data In / PoE
RJ45 shielded socket
Surge protection
Difference and common mode
Clamping protection
11V data, 60V power
Max. surge discharge 1500A (8/20 µs) power
Peak pulse current
36A (10/1000 µs) data
Shunt capacitance
<5 pF data
Response time
<1 ns
Max. PoE+ wattage per port by PSE 60W
Ambient operating temperature 0 to 40° C (32 to 104° F)
Storage temperature
-30 to 70°C (-22 to 158° F)
Ambient operating humidity
10 to 95% noncondensing

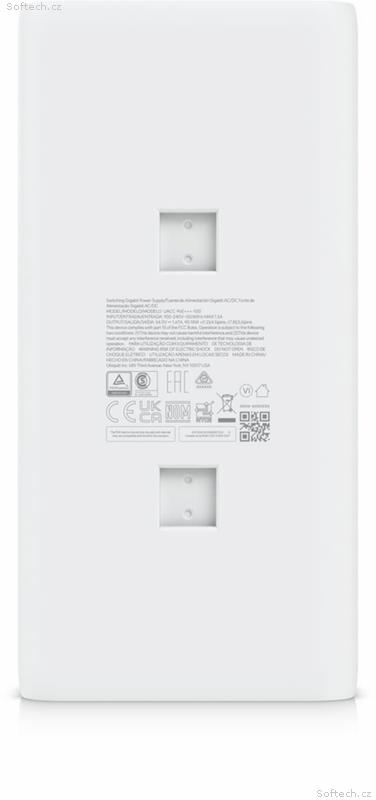

Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
