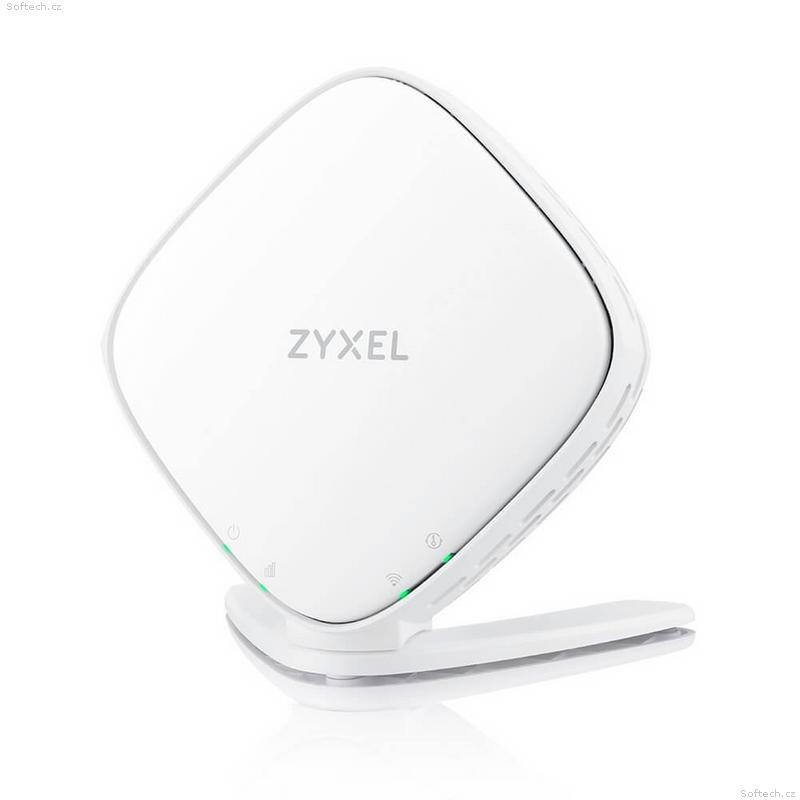

Zyxel WX3100 Wifi 6 AX1800 Dual Band Gigabit Access Point, Extender with Easy Mesh Support

Zyxel Wifi 6 AX1800 Dual Band Gigabit Access Point/Extender with Easy Mesh Support
The Zyxel WX3100-T0 Dual-Band Wireless AX1800 Gigabit Access Point/Extender enables carrier-grade performance. As a key component of the Zyxel MPro Mesh® Solutions, the Zyxel WX3100-T0 delivers smooth Ultra HD and IPTV streaming and seamless roaming for the whole-home WiFi coverage.
WiFi 6 (11ax) for superior performance and coverage
Video-grade QoS for optimized video streaming
Zyxel-developed OPAL for superior flexibility and faster time-to-market
Zyxel MPro Mesh® Solutions (compliant with EasyMesh standards)
Remote management via TR-069 and TR-181 i2
Integrated beamforming technology
Dual images for reliable system recovery
Benefits
WiFi 6 technology for superior lag-free performance
Supporting the latest WiFi 6 (11ax) standard, the Zyxel WX3100-T0 offers speeds of up to 1200 Mbps* with 5G 2x2 802.11ax and 600 Mbps* with 2.4G 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), high-power amplifier and beamforming technologies empower the WX3100-T0 to deliver premium speed for multi-streaming data access and optimal WiFi experience without dead zones.
*The maximum wireless data is derived from IEEE standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.
Premium MPro Mesh® for whole-home WiFi coverage***
Featuring EasyMesh fully compliant Zyxel MPro Mesh® Solutions, the Zyxel WX3100-T0 enhances your subscribers" experience by providing self-adapting, easy-to-manage whole-home WiFi coverage while reducing your service OPEX.
***Combining WX3100-T0 with the same Wireless Extender is advised for the ideal mesh network performance. Please contact us for detailed mesh function availability.
Wireless standards
802.11 b/g/n/ax 2.4 GHz, data rate 600 Mbps
802.11 a/n/ac/ax 5 GHz, data rate 1200 Mbps
Wireless
Wireless Protected Setup (WPS)
WMM
WPA2/WPA2-PSK with AES security type
WPA3-SAE
BSS color
TWT
Multi SSID: up to 4
Supports MU-MIMO, OFDMA DL/UL
VLAN/QoS
802.1Q VLAN tagging/un-tagging
Supports flexible traffic classification
Management
Web/HTTP/HTTPS: 2 level log-in via SSH or Telnet
Firmware upgrade via web/TR-069 RPC method
Dual images system recovery
Configuration backup/update/restore default via Web
TR-069/TR-098/TR-181 i2
DHCP client and IGMP snooping
Operation mode
AP/repeater
Ethernet interface
Two 1GbE RJ-45 ports
Wireless
5 GHz: Two internal antennas
2.4 GHz: Two internal antennas
Button
Power on/off
Reset
WPS
LED indicator
Power/system status
Backhaul link quality
WiFi
WPS
LAN1/LAN2 (LAP port)
Package contents
Wireless extender
Power adapter
Quick Start Guide
