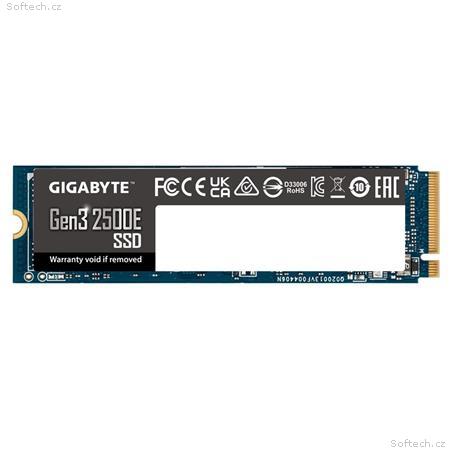

GIGABYTE SSD 1TB 2500E Gen3

GIGABYTE Gen3 2500E SSD 1TB
Form Factor: M.2 2280
Interface: PCI-Express 3.0 x4, NVMe 1.3
Total Capacity: 1000GB
Sequential Read Speed : up to 2400 MB/s
Sequential Write speed : up to 1800 MB/s
HMB (Host Memory Buffer) supported
TRIM & S.M.A.R.T support
Energy-Efficient
Interface

PCIe 3.0x4, NVMe1.3 interface

Form Factor

M.2 2280

Total Capacity

1000GB

External DDR Cache

N/A

Sequential Read speed

Up to 2400 MB/s

Sequential Write speed

Up to 1800 MB/s

Random Read IOPS

Up to 130K

Random Write IOPS

Up to 350K

Dimension

22 x 2.3 x 80 mm

Mean time between failure (MTBF)

1.5 million hours

Power Consumption (Active)

Average R : 2670mW
Average W : 3200mW

Power Consumption (Idle)

Idle : 30mW
L1.2 < 5mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Warranty

1. Limited 3 years or 240TBW.
2. Limited warranty based on 3 years or 240TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD"s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
