D-Link GO-SW-5E 5-Port 10, 100M desktop switch

D-Link GO-SW-5E 5-Port 10, 100M desktop switch
Tisk Tisk
Oblíbené Oblíbené
Doporučit Doporučit
Twitter Twitter
Umístění:v externím skladu
Dostupnost:3 - 5 dní
Cena bez DPH: 180 Kč
Cena s DPH: 218 Kč
Včetně zákonných poplatků.

Popis produktu:

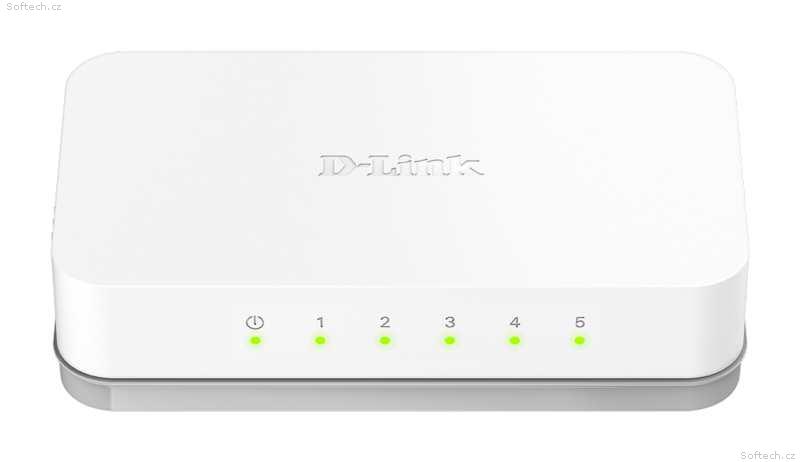

D-Link GO-SW-5E
5-Port Fast Ethernet Easy Desktop Switch
The dlinkgo GO-SW-5E 5-Port Fast Ethernet Easy Desktop Switch allows you to quickly set up a fast, reliable, and efficient wired network in your home or office. The GO-SW-5E is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Connect the GO-SW-5E to multiple computers to share files and folders, or connect it to a router to share an Internet connection.
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x flow control IEEE 802.3u
• 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3az EEE power saving
Switching Fabric
• 1 Gbps switching fabric
• Star
Data Transfer Rates
• Ethernet
o 10 Mbps (half duplex)
o 20 Mbps (full duplex)
• Fast Ethernet
o 100 Mbps (half duplex)
o 200 Mbps (full duplex)
Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports
Network Cables
• 10BASE-T:
o UTP CAT 3/4/5/5e (100 m max.)
o EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX
o UTP CAT 5/5e (100 m max.)
o EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
• Per port: Link/Activity
• Per device: Power
Transmission Method
• Store-and-forward
MAC Address Table
• 2K entries per device
MAC Address Learning
• Automatic update
Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
RAM Buffer
• 48 KB per device
• 87 x 47.85 x 21.7mm
DC Input
• External 5V/0.55A power adapter
Power Consumption
• Power On (Standby):
o DC input: 0.1 watts
o AC input: 0.69 watts
• Maximum:
o DC input: 0.9 watts
o AC input: 1.6 watts
Heat Dissipation
• Power On (Standby)
o AC input: 2.355 BTU/h Maximum
o AC input: 5.461 BTU/h
• Operating: 0 to 40 °C
• Storage: -10 to 70 °C
• Operating: 10% to 90% RH non-condensing
• Storage: 5% to 90% RH non-condensing
• FCC Class B
• CE Class B
• UL
• C-Tick Class B
• CB


Výrobce (switche): D-link
Rychlost přenosu (switche): 10/100
Počet portů (switche): < 8
Správa (switche): Nemanagovatelný
PoE 802.3af (switche): Ne
SFP (switche): Ne
Záruční podmínky: 2 rok(y)
