Aruba Instant On 1930 48G Class4 PoE 4SFP, SFP+ 370W Switch

Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch

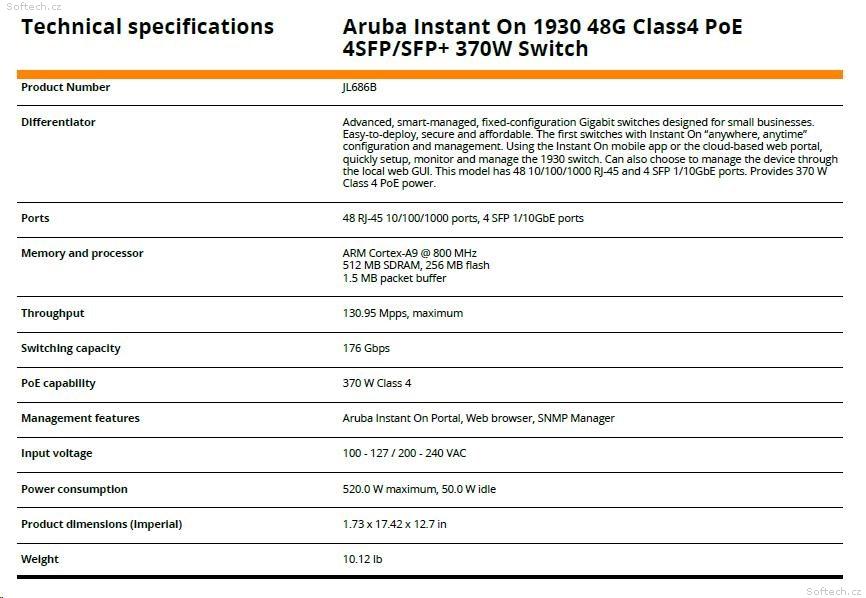

Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch (JL686B)
I/O Ports and Slots
48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports
Physical Characteristics
Dimensions
17.42(w) x 12.7(d) x 1.73(h) in
(44.25 x 32.26 x 4.39 cm)
(1U height)
Weight
10.12 lb (4.59 kg)
CPU
ARM Cortex-A9 @ 800 MHz
Memory And Flash
512 MB SDRAM
256 MB flash
Packet Buffer
1.5 MB
Performance
100 Mb latency
< 4.5 uSec
1000 Mb latency
<2.2 uSec
10000 Mb latency
<1.2 uSec
Throughput (Mpps)
130.95 Mpps
Capacity
176 Gbps
Routing table size (# of static entries)
32
MAC address table size (# of entries)
16,000
Reliability MTBF (years)
114
Environment
Operating temperature
32°F to 104°F (0°C to 40°C)
Operating relative humidity
15% to 95% @ 104°F (40°C)
Non-operating temperature
-40°F to 158°F (-40°C to 70°C)
Non-operating relative humidity
15% to 95% @ 140°F (60°C)
Altitude
Up to 10,000ft (3.048 Km)
Acoustic
LWAd = 3.7 Bel
LpAm (Bystander) = 29 dB
Notes: Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
Electrical Characteristics
Frequency
50-60 Hz
AC voltage
100 - 127 / 200 - 240 VAC
Current
5.2 A/2.6 A
Maximum power rating
465.6W
Idle power
38.3W
PoE power
370 W Class 4 PoE
Power supply
Internal power supply
Safety
UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Immunity
Generic
CISPR 24 / CISPR 35
EN
EN 55024:2010 / EN 55035:2017
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
IEC 61000-4-11
Harmonics
IEC 61000-3-2, EN 61000-3-2
Flicker
IEC 61000-3-3, EN 61000-3-3
Device Management
Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rackmounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Transceivers

Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A )
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A)
Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
