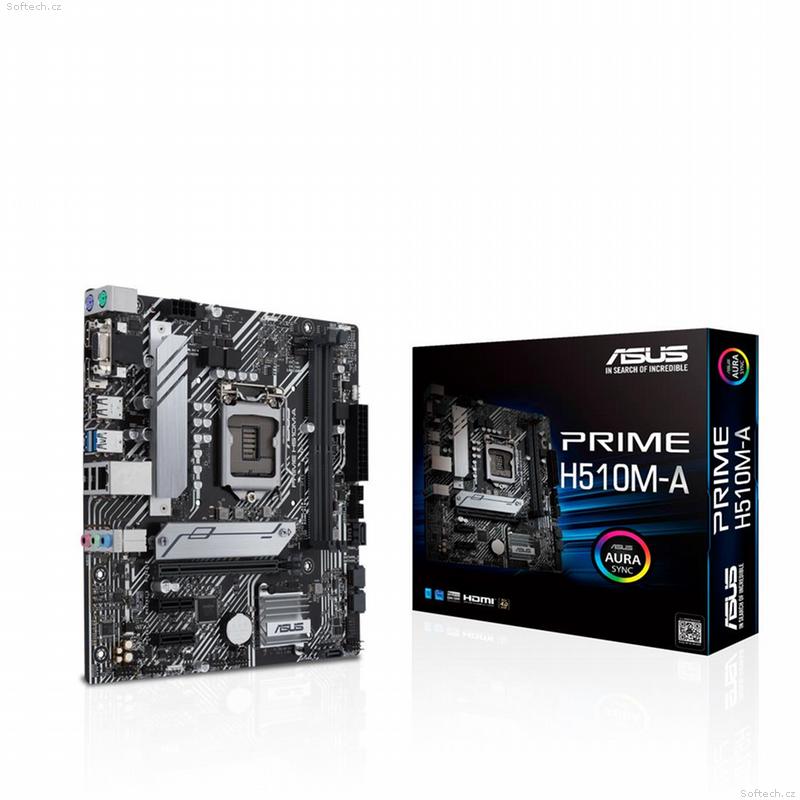

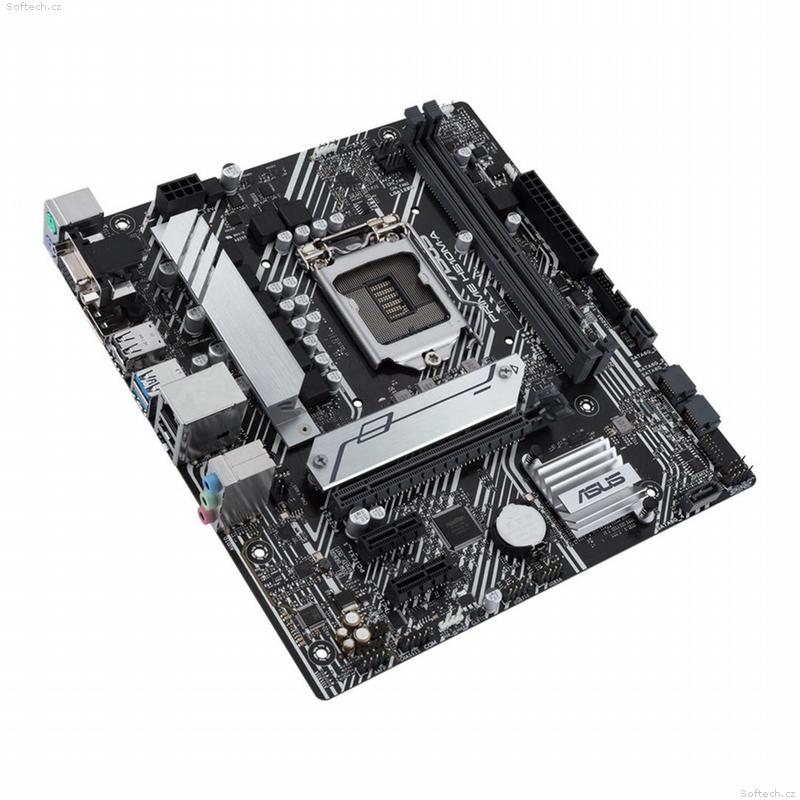

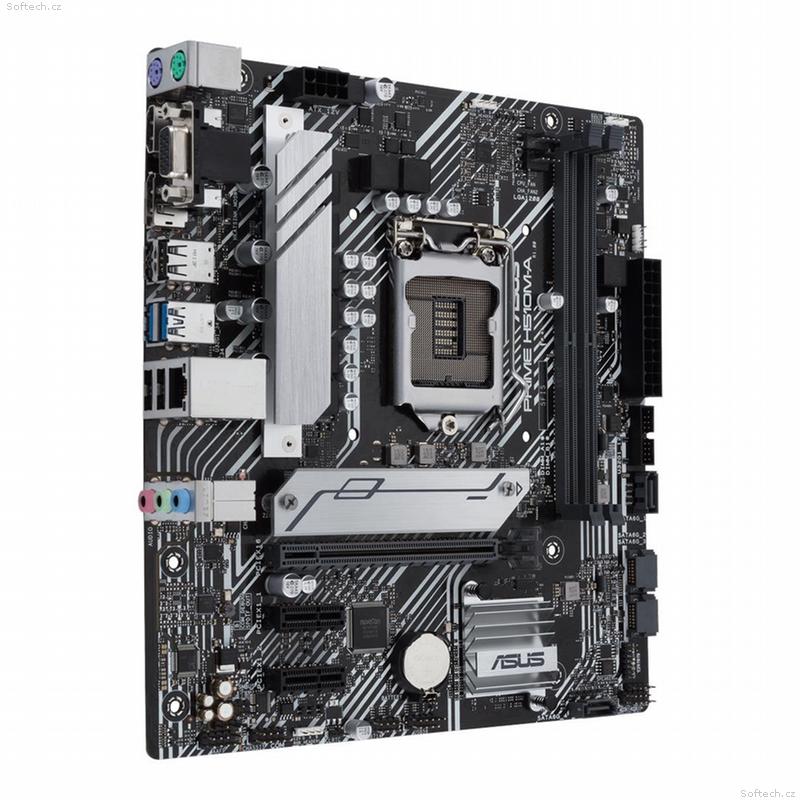

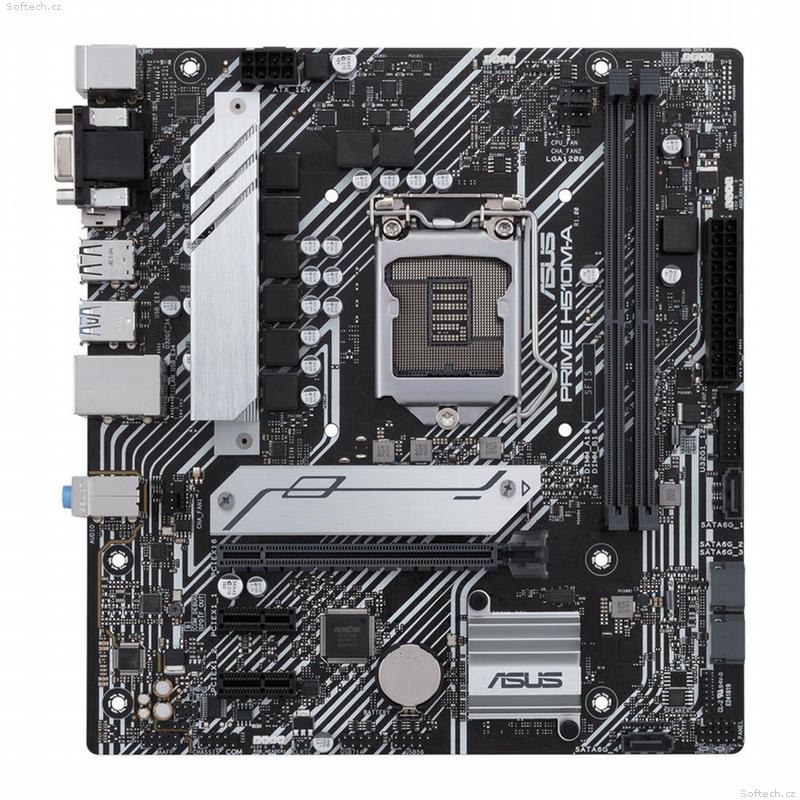

ASUS PRIME H510M-A, LGA 1200, mATX

Chipset: Intel® H510 Chipset

Rozměrový formát: microATX Form Factor (226 mm x 211 mm)
Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Patice procesoru: LGA 1200

Pozice na paměti: 2x DDR4 DIMM
Podpora pro paměti:
*3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: DDR4
*Dual Channel Memory Architecture
*Intel® Extreme Memory Profile (XMP)

Grafické výstupy:
*Integrated Graphics Processor (na základě procesoru)

Zvuková karta:
*Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:
*1x Intel® I219-V 1Gb Ethernet

Rozšiřující sloty:
*1x PCIe 4.0/3.0 x16 slot
*2x PCIe 3.0 x1 slots

SATA:
*4x SATA 6Gb/s ports

M.2:
*M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB:
*zadní USB porty ( celkem 6 )
*2x USB 3.2 Gen 1 ports (2 x Type-A)
*4x USB 2.0 ports (4 x Type-A)
*přední USB porty ( celkem 6 )
*2x USB 3.2 Gen 1 ports
*4x USB 2.0 ports

Interní porty:
*1x 4-pin CPU Fan header
*2x 4-pin Chassis Fan headers
*1x 24-pin Main Power connector
*1x 8-pin +12V Power connector
*1x M.2 slot (Key M)
*4x SATA 6Gb/s ports
*1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2x USB 2.0 headers support additional 4 USB 2.0 ports
*2x AURA Addressable Gen 2 headers
*2x AURA RGB headers
*1x Clear CMOS header
*1x COM Port header
*1x Front Panel Audio header (AAFP)
*1x S/PDIF Out header
*1x Speaker header
*1x SPI TPM header (14-1pin)
*1x 10-1 pin System Panel header

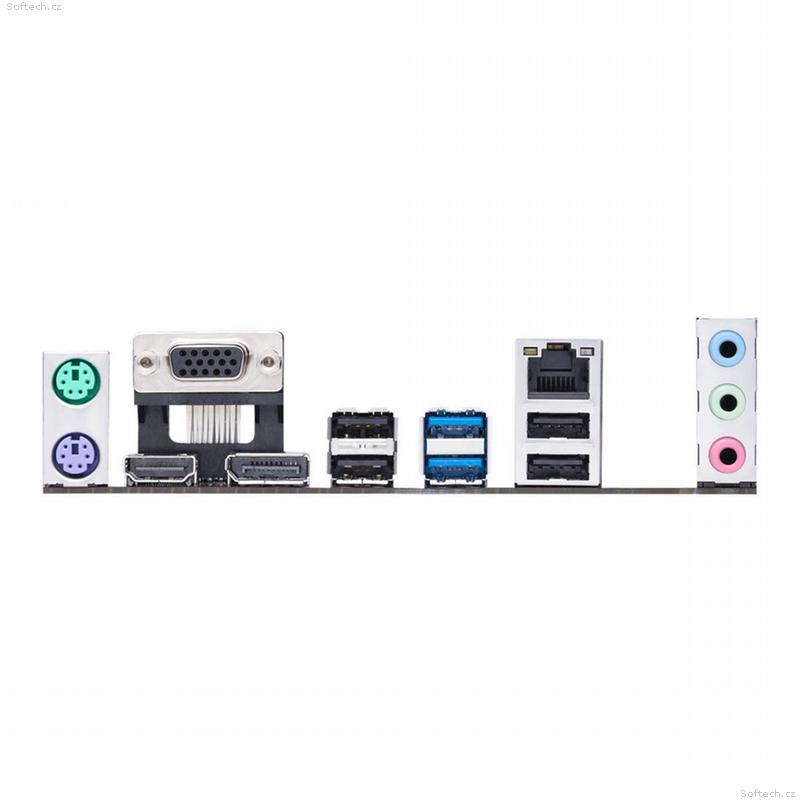

Externí porty:
*2x USB 3.2 Gen 1 ports (2 x Type-A)
*4x USB 2.0 ports (4 x Type-A)
*1x DisplayPort
*1x D-Sub port
*1x HDMI™ port
*1x Intel® I219-V 1Gb Ethernet port
*3x Audio jacks
*1x PS/2 Keyboard (purple) port
*1x PS/2 Mouse (green) port

Obsah balení:
*2x SATA 6Gb/s cables
*1x I/O Shield
*1x M.2 Rubber Package
*1x M.2 SSD screw package
*1x Support DVD
*1x User manual

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
