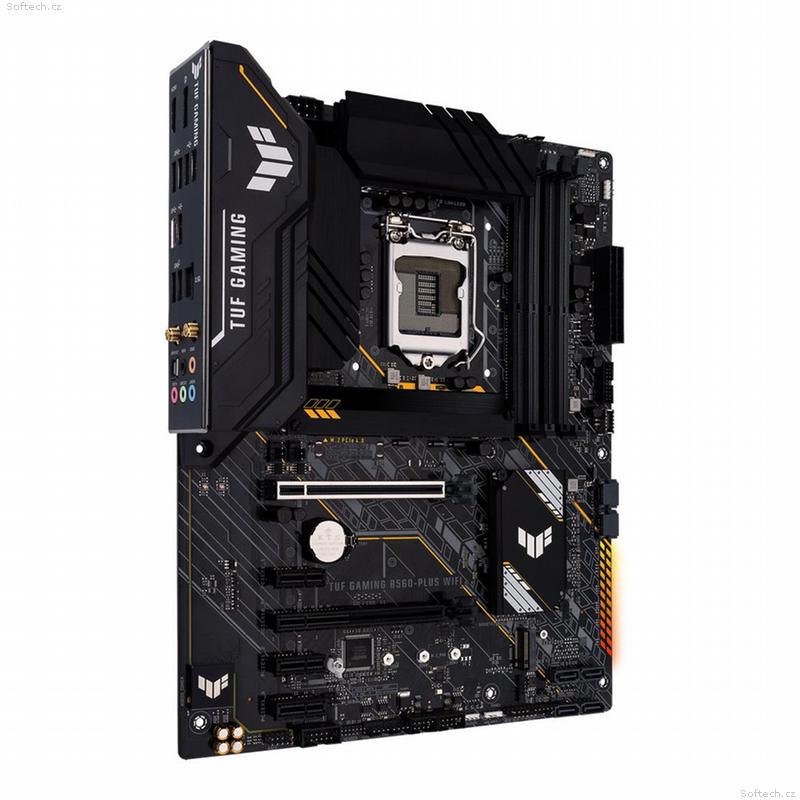

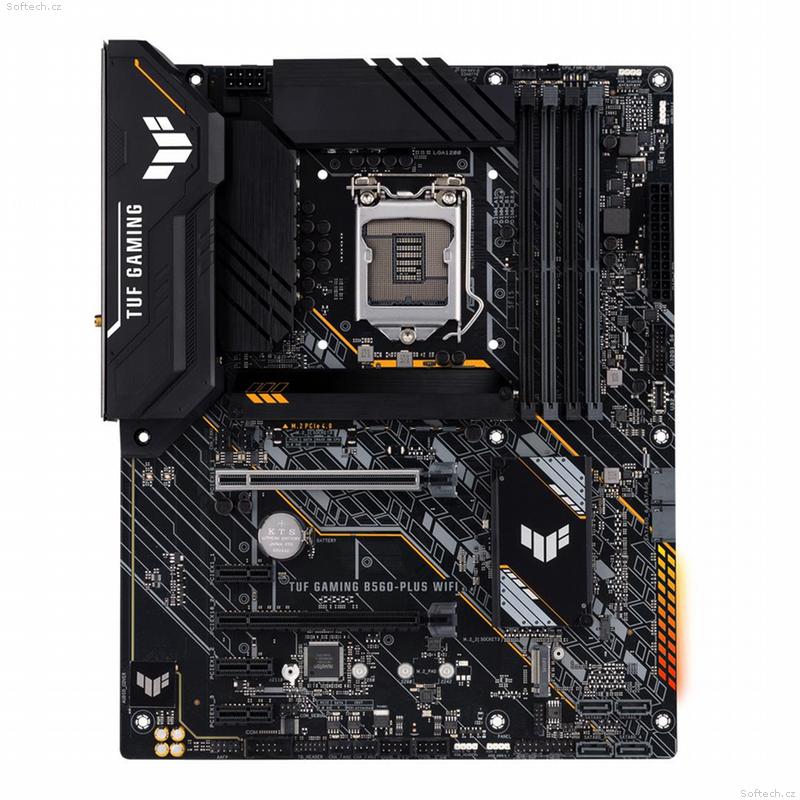

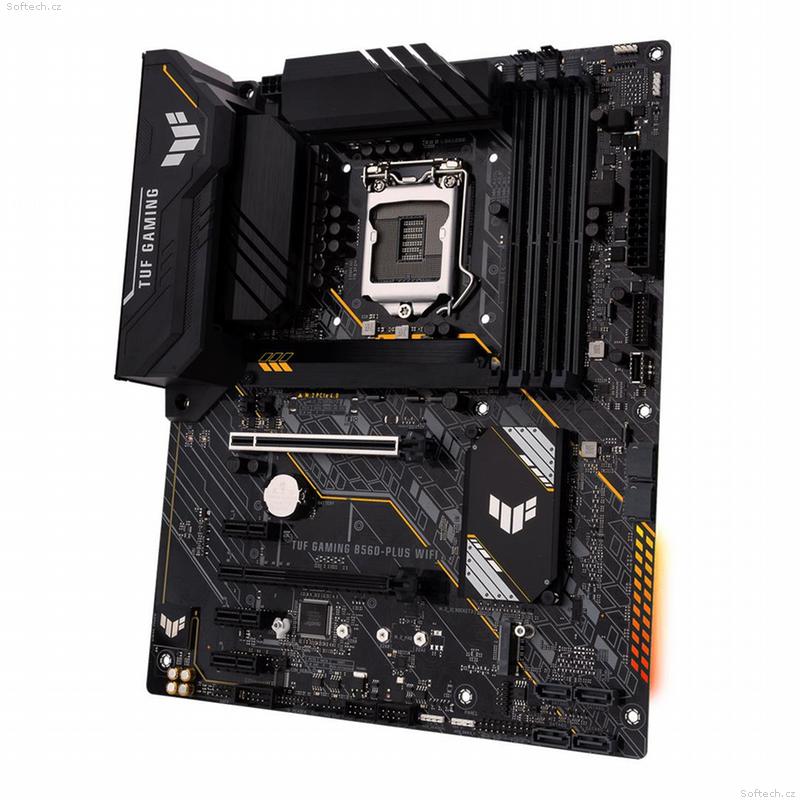

ASUS TUF GAMING B560-PLUS WIFI, LGA 1200, ATX

Chipset: Intel® B560 Chipset

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Patice procesoru: LGA 1200

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:
*5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
*Dual Channel Memory Architecture
*Intel® Extreme Memory Profile (XMP)
*OptiMem II

Grafická karta:
*Integrated Graphics Processor (na základě procesoru)

Zvuková karta:
*ALC887/897

Síťová karta:
*1x Realtek 2.5Gb Ethernet
*Intel® Wi-Fi 6

Rozšiřující sloty:
*1x PCIe 4.0/3.0 x16
*1x PCIe 3.0 x16 (max. x4)
*3x PCIe 3.0 x1 slots

SATA:
*6x SATA 6Gb/s ports

M.2:
*M.2_1 slot (Key M), type 2242/2260/2280/22110
*M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

USB:
*zadní USB porty ( celkem 8 )
*2x USB 3.2 Gen 2 port(s) (2 x Type-A)
*3x USB 3.2 Gen 1 port(s) (2 x Type-A + 1x USB Type-C®)
*3x USB 2.0 port(s) (4 x Type-A)
*přední USB porty ( celkem 7 )
*1x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®)
*2x USB 3.2 Gen 1 ports
*4x USB 2.0 ports

Interní porty:
*1x TB Header (for add-on TB card)
*1x 4-pin CPU Fan header(s)
*1x 4-pin CPU OPT Fan header(s)
*1x 4-pin AIO Pump header
*3x 4-pin Chassis Fan header(s)
*1x 24-pin Main Power connector
*1x 8-pin +12V Power connector
*2x M.2 slots (Key M)
*6x SATA 6Gb/s ports
*1x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
*1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
*2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
*2x AURA Addressable Gen 2 header(s)
*2x AURA RGB header(s)
*1x Clear CMOS header
*1x COM Port header
*1x Front Panel Audio header (AAFP)
*1x 20-3 pin System Panel header with Chassis intrude function
*1x Thunderbolt™ header

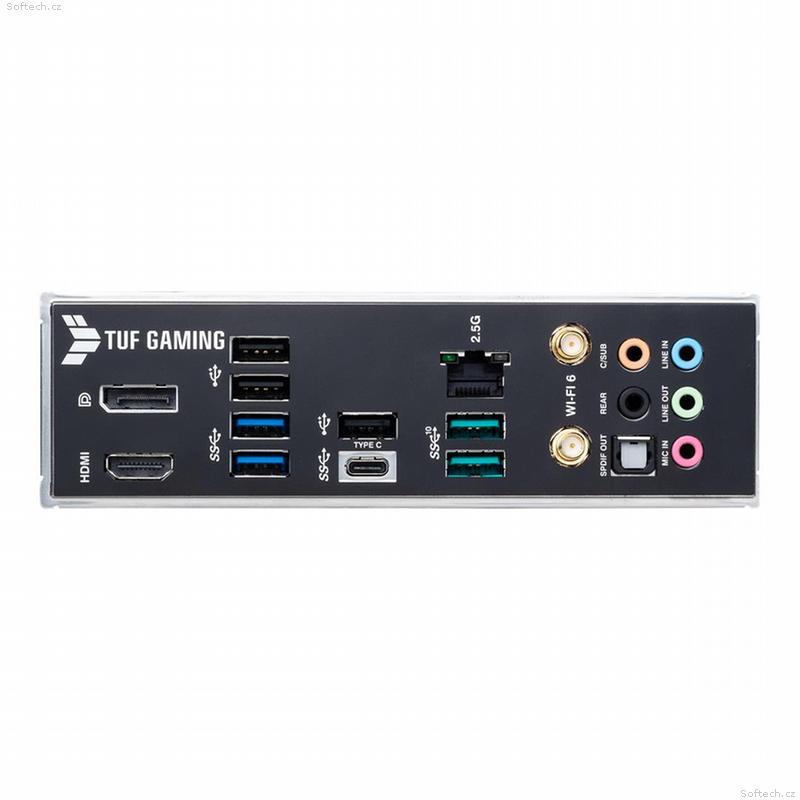

Externí porty:
*2x USB 3.2 Gen 2 port(s) (2 x Type-A)
*3x USB 3.2 Gen 1 port(s) (2 x Type-A + 1x USB Type-C®)
*3x USB 2.0 port(s) (3 x Type-A)
*1x DisplayPort
*1x HDMI™ port
*1x ASUS Wi-Fi Module
*1x Realtek 2.5Gb Ethernet port
*5x Audio jacks
*1x Optical S/PDIF out port

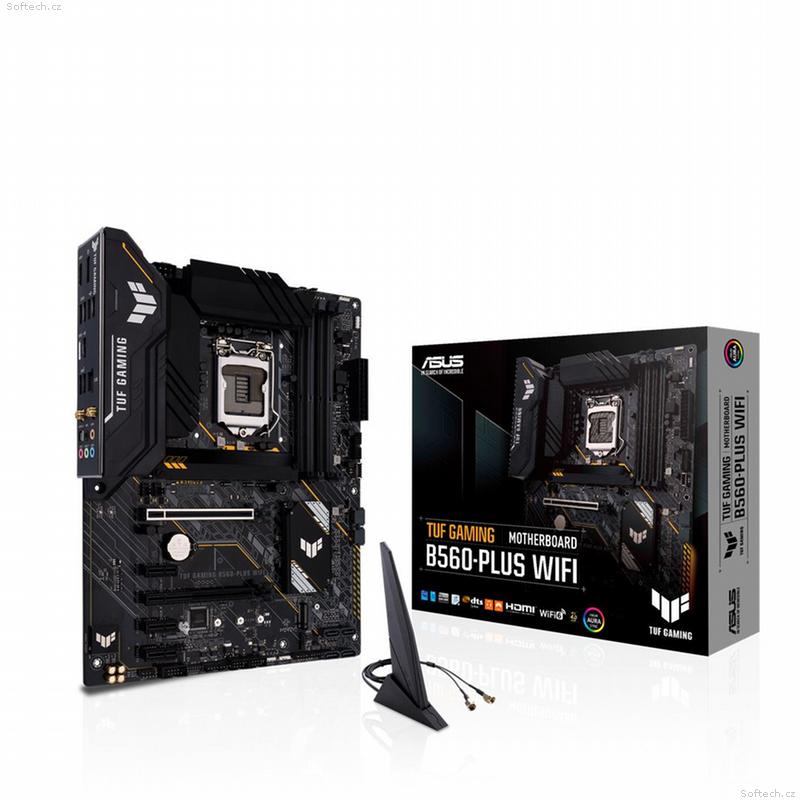

Obsah balení:
*2x SATA 6Gb/s cables
*1x ASUS Wi-Fi moving antennas
*1x M.2 Rubber Package(s)
*1x M.2 SSD screw package(s)
*1x TUF Gaming sticker
*1x Support DVD
*1x TUF Certification card
*1x User manual

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
