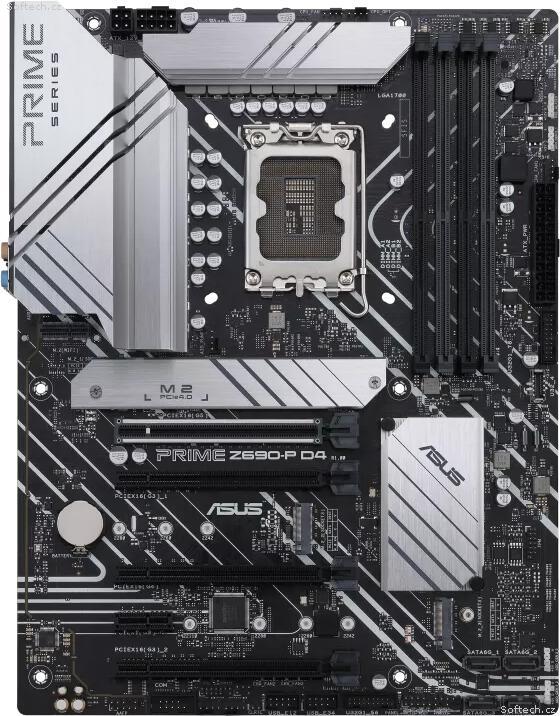

ASUS PRIME Z690-P D4-CSM, LGA 1700, ATX

ASUS PRIME Z690-P D4-CSM


Rozměrový formát: ATX
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: Intel Socket LGA1700

Pozice na paměti: 4 x DIMM
Podpora pro paměti:
*DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu:
*DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
*Dual Channel Memory Architecture
*Supports Intel Extreme Memory Profile (XMP)
*OptiMem II

Grafické výstupy:
*1 x DisplayPort
*1 x HDMI Port

Zvuková karta:
*Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:
*1 x Realtek 2.5Gb Ethernet

Rozšiřující sloty:
Intel 12th Gen Processors:
*1 x PCIe 5.0/4.0/3.0 x16 slot
Intel Z690 Chipset:
*1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
*2 x PCIe 3.0 x16 slots (support x4 mode)
*1 x PCIe 3.0 x1 slot

RAID řadič: NVMe RAID 0/1/5, SATA RAID 0/1/5/10

SATA:
*4 x SATA 6Gb/s ports

M.2:
*3 x M.2 slots

USB:
*zadní USB porty ( celkem 6 )
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*1 x USB 3.2 Gen 2 port (1 x Type-A)
*2 x USB 3.2 Gen 1 ports (2 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*přední USB porty ( celkem 9 )
*1 x USB 3.2 Gen 1 connector (supports USB Type-C)
*2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports

Interní porty:
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*3 x 4-pin Chassis Fan headers
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
*3 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
*1 x USB 3.2 Gen 1 connector (supports USB Type-C)
*2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*3 x Addressable Gen 2 headers
*1 x AURA RGB headers
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x SPI TPM header (14-1pin)
*1 x 20-5pin System Panel header
*1 x Thunderbolt header

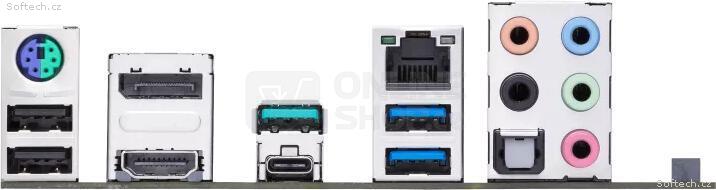

Externí porty:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
*1 x USB 3.2 Gen 2 port (1 x Type-A)
*2 x USB 3.2 Gen 1 ports (2 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort
*1 x HDMI port
*1 x V-M.2 slot (Key E)
*1 x Realtek 2.5Gb Ethernet port
*5 x Audio jacks
*1 x Optical S/PDIF out port
*1 x PS/2 Keyboard/Mouse combo port

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

*CSM - Přibalená licence

Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z690-P-D4-CSM/
