Popis produktu:
Product SKUs

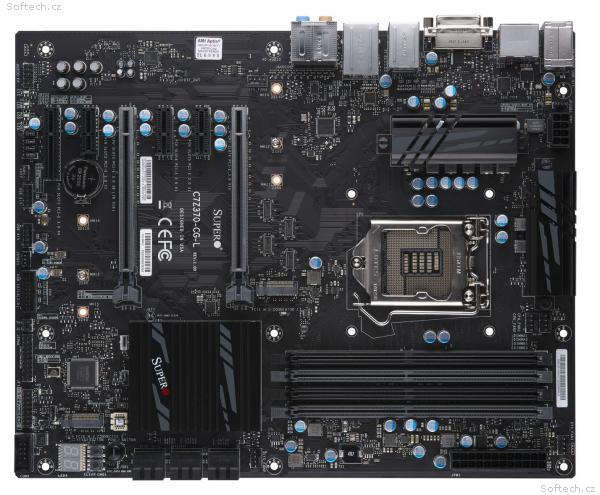

MBD-C7Z370-CG-L C7Z370-CG-L
Physical Stats
Form Factor ATX
Dimensions 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU 8th Generation Intel® Core? i7(8086K and 8700K are not supported)/i5/i3/Pentium®/Celeron® Processor.
Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP
8th Gen Intel® Core? desktop processors are supported with Intel® 300 Series chipset motherboards only
System Memory
Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, DDR4-up to 3000+ MHz (OC), in 4 DIMM slots
Memory Type 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.2V
On-Board Devices
Chipset Intel® Z370 Express
SATA Intel® Z370 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers Single LAN with Intel® single Ethernet PHY i219V
Audio ALC 1220 HD Audio
Graphics DP up to 1.2; HDMI up to 1.4b
Input / Output
LAN 1 RJ45 Gigabit Ethernet LAN ports
USB 6 USB 2.0 ports (2 rear + 4 via headers)
6 USB 3.0 ports (4 rear + 2 via headers)
2 USB 3.1 ports (1 Type A, 1 Type C)
Video Output 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port,
DP up to 1.2; HDMI up to 1.4b
Serial Port / Header 1 COM Port (1 header)
TPM 1 TPM Header
Expansion Slots
PCI-E 2 PCI-E 3.0 x16 slots (16/NA or 8/8),
1 PCI-E 3.0 x4,
3 PCI-E 3.0 x1
M.2 M.2 Interface: 1 PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
Form Factor: 2260/2280/22110, 2260/2280/22110
Key: M-Key , M-Key (RAID 0,1 support)
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features ACPI 6.0
SMBIOS 3.0 or later
UEFI 2.4
USB Keyboard support
Management
Software SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
CPU thermal trip support for processor protection
PC Health Monitoring
Voltage +1.1V, +12V, +3.3V, +5V, 1.05 (PCH), 3.3V standby, 5+2 Phase-switching voltage regulator, VBAT
FAN 5x 4-pin fan headers (up to 5 fans), 5 fans with tachometer status monitoring, Fan speed control
Temperature CPU thermal trip support, PECI
LED Standby alert LED
Other Features Chassis intrusion detection, Chassis intrusion header, Voltage and Frequency Overclocking
Parts List ?
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C7Z370-CG-L 1 C7Z370-CG-L Motherboard
--
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C7Z370-CG-L 1 C7Z370-CG-L Motherboard
IO shield MCP-260-00116-0N 1 C7Z370-CG-L IO Shield
QRG MNL-2002-QRG-100 1 C7Z370-CG-L Quick Reference Guide
SATA cable CBL-SAST-1001-2 2 SATA6G,FLAT,ST-RA,50CM,BLACK,No Latch
SATA cable CBL-SAST-1000-2 2 SATA6G,FLAT,50CM,BLACK,No Latch
Driver CD CDR-C7 1 Driver CD Rev 1.31x
Chassis (Optimized for C7Z370-CG-L)
Embedded Compact 1U 2U 3U Mid/Mini-Tower
4U/Tower
SCGS5A-753R
SCGS5A-753K
SC732D4-500B
SC732D4-903B
