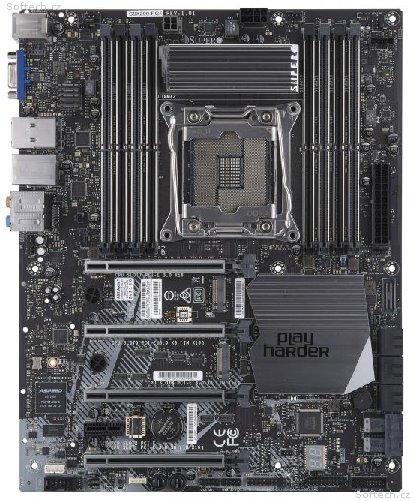

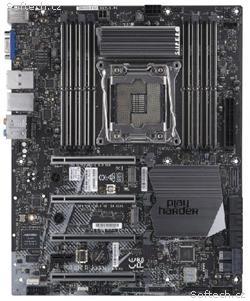

SUPERMICRO MB 1xLGA2066, x299, 8x DDR4,6xSATA3, 5xPCIe 3.0(depending on CPU), M.2, 2xLAN, NO Audio, VGA, IPMI

Technical Specifications for MBD-C9X299-RPGF-O
General Information
Manufacturer Part Number MBD-C9X299-RPGF-O
Brand Name Supermicro
Product Type Desktop Motherboard
Processor & Chipset
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket R4 LGA-2066
Processor Supported Core X-Series
Memory
Number of Memory Slots 8
Memory Form Factor UDIMM
DIMM
Maximum Memory 128 GB
Memory Speed Supported 1.87 GHz
2.67 GHz
2.40 GHz
2.13 GHz
1.60 GHz
Memory Technology DDR4 SDRAM
Intel Optane Memory Ready Yes
I/O Controller
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 10
5
1
0
Video
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2500
Network & Communication
Gigabit Ethernet Yes
I/O Expansions
Number of Total Expansion Slots 5
Total Number of PCI Express Slots 5
Number of PCI Express x1 Slots 1
Number of PCI Express x16 Slots 4
Interfaces/Ports
Total Number of USB Ports 6
Number of USB 3.0 Ports 2
Number of USB 3.1 Ports 4
VGA Yes
Onboard Interfaces
Number of SATA Interfaces 6
Number of M.2 Interfaces 2
Total Number of Onboard USB Ports 6
Number of Onboard USB 3.0 Ports 2
Physical Characteristics
Form Factor ATX
Width 12"
Depth 9.6"
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
WEEE
